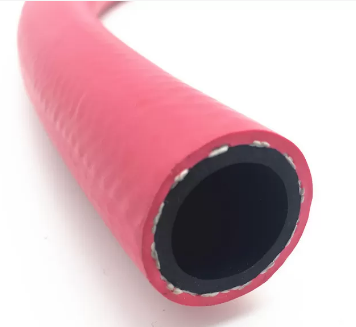

General Purpose Rubber Air Hose
ID 1/4 To 1-1/2 Inch Smooth Finish Surface
Description:
Construction: Tube: EPDM synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Standard length: 50m, 100m or customized.
Applications:
Mainly used for conveying of air and water in industrial, agricultural and construction applications.
Competitive Advantage:
General purpose Rubber air / water hose, is popular in USA, Canada market, made of non-recycled rubber, according to ISO-2398 standard.
Flexible and easy to handle;
Excellent for abrasion and temperature resistant.
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
1/4" | 6.35 | 13 | 20 | 300 | 60 | 900 | 100 | 0.025 | 0.17 |
5/16" | 7.94 | 15 | 20 | 300 | 60 | 900 | 100 | 0.03 | 0.22 |
3/8" | 9.53 | 17 | 20 | 300 | 60 | 900 | 100 | 0.04 | 0.26 |
1/2" | 12.7 | 21 | 20 | 300 | 60 | 900 | 100 | 0.07 | 0.4 |
5/8" | 15.88 | 24 | 20 | 300 | 60 | 900 | 50 | 0.06 | 0.45 |
3/4" | 19.05 | 29 | 20 | 300 | 60 | 900 | 50 | 0.07 | 0.7 |
1" | 25.4 | 36 | 12 | 180 | 36 | 540 | 50 | 0.09 | 0.85 |
1-1/4" | 31.8 | 44 | 10 | 150 | 31 | 450 | 50 | 0.16 | 1.4 |
1-1/2" | 38.1 | 51 | 10 | 150 | 31 | 450 | 50 | 0.2 | 1 |
