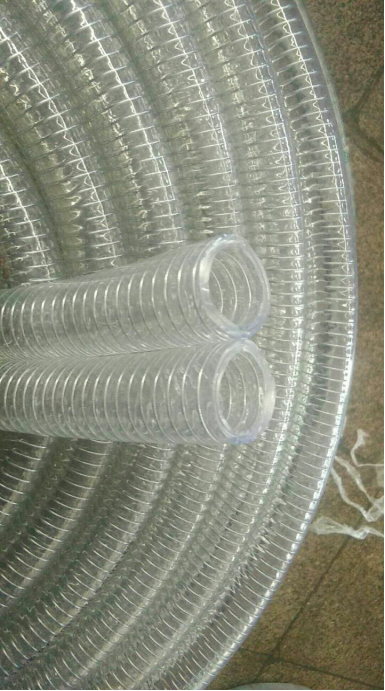

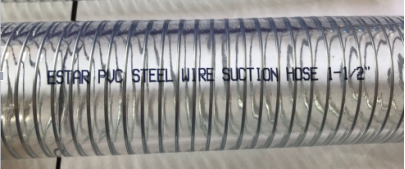

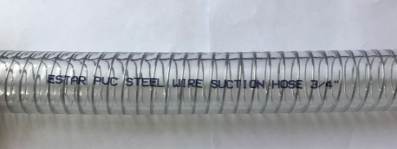

PVC Steel Wire,Spiral Reinforced Hose

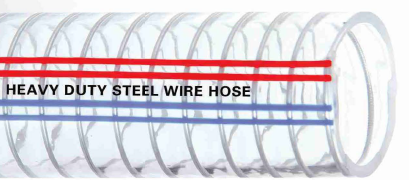

HEAVY DUTY
• Used for drawing and conveying water,oil and powder in factory,agrilculture.
• Suitable for high strength working environment like suction and discharge for sand.
• Good adaptability to hard weather condition and Small bending radius,Anti-abrasion.
• Passed the ROHS,PAHS testing.
• Anti-uv.

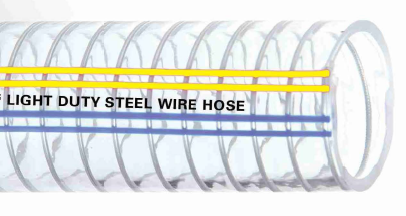

Size I.D. O.D. Length Working pressure Burst pressure Weight Inch mm mm M/roll Bar Bar g/m 1/4" 6 11 100 8 24 115 5/16" 8 14 100 8 24 150 3/8" 9 15 100 8 24 170 3/8" 10 16 100 8 24 200 1/2" 12 18 100 8 24 220 5/8" 15 22 50 6 18 300 3/4" 19 26 50 6 18 360 3/4" 20 26 50 6 18 320 7/8" 22 27 50 6 18 300 1" 25 33 50 5 16 540 1 -1/4" 32 40 50 5 16 700 1-1/2" 38 48 50 5 15 1000 1-3/4" 45 56 50 5 15 1300 1-7/8" 48 59 50 5 15 1400 2" 50 62 50 5 15 1600 2-5/16" 58 69 40 4 12 1600 2-1/2" 64 78 30 4 12 2500 3" 76 90 30 4 12 3000 3-1/2" 90 108 20 4 12 4500 4" 102 116 20 4 12 4300 4-3/8" 110 123 20 3 9 4000 4-5/8" 117 133 10 3 9 5500 5" 127 143 10 3 9 6000 5-1/2" 140 156 10 3 9 6500 6" 152 170 10 2 6 8500 6-5/16" 160 176 10 2 6 8500 7" 180 196 10 2 6 8500 8" 200 224 10 2 6 12000 LIGHT DUTY
• Used for drawing and conveying water,oil and powder in factory,agrilculture.
• Spiral steel wire reinforced incorporated within the wall of flexible pvc tubing.
• Suitable for usual pressure environment.
• High-quality， low price,higher cost peormance
• Anti-uv.
Size I.D. O.D. Length Working pressure Burst pressure Weight Inch mm mm M/roll Bar Bar g/m 3/8" 9 14 100 6 18 150 3/8" 10 15 100 6 18 160 1/2" 12 17 100 6 18 170 5/8" 15 21 100 6 18 250 3/4" 19 24 50 5 15 250 1" 25 29 50 4 12 220 1" 25 30 50 4 12 350 1-1/4" 32 36 50 3 9 400 1-1/4" 32 38 50 3 10 500 1-1/4" 32 39 50 3 10 600 1-1/2" 38 42 50 3 9 500 1-1/2" 38 44 50 3 9 600 1-1/2" 38 45 50 3 9 800 1-3/4" 45 50 50 3 9 600 1-3/4" 45 52 50 3 9 800 1-7/8" 48 54 50 3 9 800 1-7/8" 48 56 50 3 9 1000 2" 50 55.5 50 3 9 800 2" 50 57 50 3 9 1000 2" 50 60 50 3 9 1400 2-5/16" 58 65 30 2 6 1200 2-1/2" 64 72 30 2 6 1500 2-1/2" 64 75 30 2 6 2000 3" 76 84 30 2 6 1600 3" 76 87 30 2 6 2500 3-1/2" 90 102 20 2 6 3000 4" 102 112 20 2 6 2800 4" 102 113 20 2 6 3000
-
