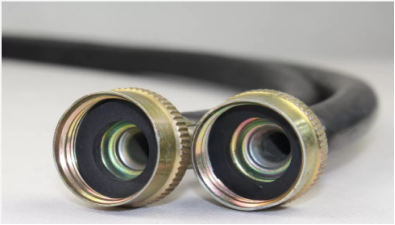

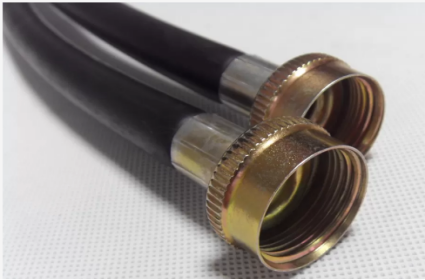

Rubber Washing Machine Hose Assembly
ID 3/8" and 1/2" Rubber Washing Machine Hose Assembly with fittings
Construction: Tube: NR& SBR or EPDM synthetic rubber.
Reinforcement: Polyester yarn reinforcement.
Cover: NR & SBR or EPDM synthetic rubber.
Temperature: -10℃ - +80℃
Color: Black, Red, Blue, Green, Orange, etc.

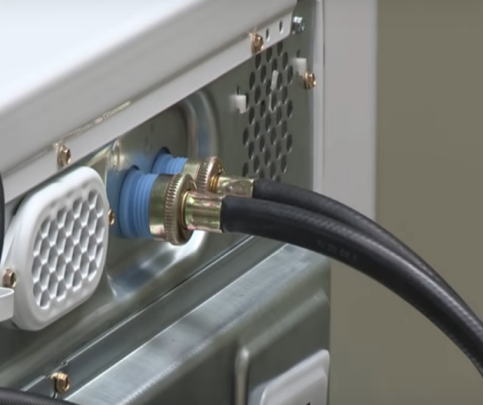

Application: Mainly used for conveying of hot water or cold water for washing machine.
Standard length: 4ft, 5ft, 6ft, 8ft, 10ft, 12ft, 15ft
Specification of rubber washing machine hose:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | |||
inch | mm | mm | bar | psi | bar | psi | ft/pc |
3/8" | 9.5 | 16 | 14 | 200 | 55 | 800 | 6 |
1/2” | 12.7 | 21 | 14 | 200 | 55 | 800 | 6 |
1,Specification of fittings: 3/4" female hose ends on two ends; Or one end male, the other end female.
2, Specification of fittings: BSP-Metric thread female w/90 degree connector x standard female thread
Rubber washing machine Y mixer hose:
12" arms individually bagged;
Temperating: -10C to 80c(-14F to 176F);
Fitting sizes: 3/8" single male and two 3/4" female fittings.
For use to connect single inlet to washing machine inlet valve
Hose Specification:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | |||
inch | mm | mm | bar | psi | bar | psi | ft/pc |
3/8" | 9.5 | 16 | 14 | 200 | 55 | 800 | 12 |
ESTAR Rubber washing machine hose assembly, is popular in USA, Canada market, made of non-recycled rubber, according to ISO 1403--1986 standard.ESTAR can crimp the specified fittings and quick released coupling for you.
