60 Cone Seal Fitting
10611METRIC MALE DOUBLE USE FOR 60 CONE
SEAT OR BOUNDED SEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 10611-14-04 M14X1.5 6 4 13 17 10611-16-05 M16X1.5 8 5 14 17 10611-18-06 M18X1.5 10 6 15 19 10611-22-08 M22X1.5 12 8 17 24 10611-24-10 M24X1.5 16 10 17 27 10611-27-10 M27X1.5 16 10 18 30 10611-30-12 M30X1.5 20 12 20 32 10611-39-16 M39X2 25 16 21 41 10611-45-20 M45X2 32 20 22 46 10611-52-24 M52X2 40 24 23 55 20611/20611-T

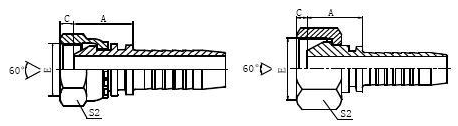

METRIC FEMALE 60 CONE
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C S2 20611-14-04 M14X1.5 6 4 18 5.5 19 20611-16-05 M16X1.5 8 5 19 5.5 22 20611-16-06 M16X1.5 10 6 19 5.5 22 20611-18-06 M18X1.5 10 6 20 5.5 24 20611-20-08 M20X1.5 12 8 22 6.5 27 20611-22-08 M22X1.5 12 8 22.5 6 27 20611-24-10 M24X1.5 16 10 24.5 6.5 30 20611-26-10 M26X1.5 16 10 25.5 6 32 20611-27-10 M27X1.5 16 10 25.5 6 32 20611-30-10 M30X1.5 16 10 26.5 6 36 20611-30-12 M30X1.5 20 12 26.5 6 36 20611-36-16 M36X2 25 16 30 6.5 41 20611-39-16T M39X2 25 16 30 6.5 46 20611-45-20T M45X2 32 20 31 8.5 55 20611-52-24T M52X2 40 24 32 10 60 20641/20641T

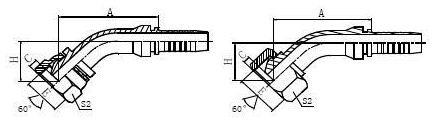

45 METRIC FEMALE 60 ONE
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C H S2 20641-14-04 M14X1.5 6 4 42.7 5.5 20.6 19 20641-16-05 M16X1.5 8 5 45.1 5.5 21.8 22 20641-18-06 M18X1.5 10 6 47.4 5.5 23.2 24 20641-22-08 M22X1.5 12 8 61.8 6 26.8 27 20641-27-10 M27X1.5 16 10 74 6 29.2 32 20641-30-12 M30X1.5 20 12 81.6 6 33.5 36 20641-36-14T M36X2 22 14 81.9 6.5 31.6 41 20641-39-16T M39X2 25 16 88.5 6.5 34.3 46 20641-45-20T M45X2 32 20 99.1 8.5 38.4 55 20641-52-24T M52X2 40 24 113.4 10 42.7 60 20691/20691T

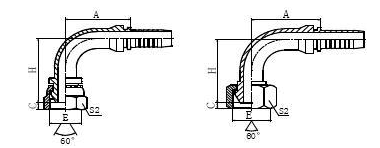

90 METRIC FEMALE 60 CONE
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C H S2 20691-14-04 M14X1.5 6 4 30 5.5 37 19 20691-16-05 M16X1.5 8 5 33 5.5 40.5 22 20691-18-06 M18X1.5 10 6 35.3 5.5 43.8 24 20691-22-08 M22X1.5 12 8 41 6 52 27 20691-27-10 M27X1.5 16 10 56.5 6 58 32 20691-30-12 M30X1.5 20 12 66.2 6 68.5 36 20691-36-16 M36X2 25 16 78 6.5 76.5 41 20691-36-14T M36X2 22 14 71.2 6.5 67.5 41 20691-39-16T M39X2 25 16 76.7 6.5 74 46 20691-45-20T M45X2 32 20 91.5 8.5 85 55 20691-52-24T M52X2 40 24 109.4 10 99 60
-
