HOME >
SAE Code 61 Flange Fitting
FLANGE FITTING FOR STEEL BRAID REINFORCED HYDRAULIC HOSE
87311
3000 PSI Flange fitting for steel braided reinforced hydraulic hoses
SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87311-08-08 1/2" 12 8 46 30.2 24 6.73 87311-12-08 3/4" 12 8 47 38.1 32 6.73 87311-12-10 3/4" 16 10 48 38.1 32 6.73 87311-12-12 3/4" 20 12 48 38.1 32 6.73 87311-12-16 3/4" 25 16 49 38.1 32 6.73 87311-16-12 1" 20 12 51 44.4 38 8 87311-16-16 1" 25 16 52 44.4 38 8 87311-16-20 1" 32 20 53 44.4 38 8 87311-20-16 1.1/4" 25 16 57 50.8 43 8 87311-20-20 1.1/4" 32 20 58 50.8 43 8 87311-24-20 1.1/2" 32 20 68 60.3 50 8 87311-24-24 1.1/2" 40 24 68 60.3 50 8 87311-32-24 2" 40 24 70 71.4 62 9.53 87311-32-32 2" 50 32 70 71.4 62 9.53 87311-32-40 2" 64 40 75 71.4 62 9.53 87311-40-32 2.1/2" 50 32 73 84.1 74 9.53 87311-40-40 2.1/2" 64 40 76 84.1 74 9.53 87341

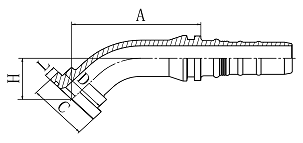

45 SAE 3000 PSI for steel braided reinforced hydraulic hoses
45 SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87341-08-08 1/2" 12 8 58.2 30.2 24 23.3 6.73 87341-12-08 3/4" 12 8 58.9 38.1 32 24 6.73 87341-12-12 3/4" 20 12 77 38.1 32 28.9 6.73 87341-16-12 1" 20 12 77 44.4 38 28.9 8 87341-16-16 1" 25 16 85.2 44.4 38 29.7 8 87341-16-20 1" 32 20 94.5 44.4 38 33.8 8 87341-20-16 1.1/4" 25 16 85.2 50.8 43 29.7 8 87341-20-20 1.1/4" 32 20 94.5 50.8 43 33.8 8 87341-24-20 1.1/2" 32 20 95.9 60.3 50 35.2 8 87341-24-24 1.1/2" 40 24 109.9 60.3 50 39.1 8 87341-32-24 2" 40 24 109.9 71.4 62 39.1 9.53 87341-32-32 2" 50 32 129.3 71.4 62 46.3 9.53 87391
3000 PSI Flange fiting for steel braided reinforced hydraulic hoses
90 SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87391-08-08 1/2" 12 8 41 30.2 24 47 6.73 87391-12-08 3/4" 12 8 41 38.1 32 48 6.73 87391-12-12 3/4" 20 12 66.2 38.1 32 62 6.73 87391-12-16 3/4" 25 16 76.7 38.1 32 67.5 6.73 87391-16-12 1" 20 12 66.2 44.4 38 62 8 87391-16-16 1" 25 16 78 44.4 38 67.5 8 87391-16-20 1" 32 20 91.5 44.4 38 78.5 8 87391-20-16 1.1/4" 25 16 78 50.8 43 67.5 8 87391-20-20 1.1/4" 32 20 91.5 50.8 43 78.5 8 87391-20-24 1.1/4" 40 24 108.5 50.8 43 78.5 8 87391-24-20 1.1/2" 32 20 91.5 60.3 50 80.5 8 87391-24-24 1.1/2" 40 24 109.4 60.3 50 94 8 87391-32-24 2" 40 24 109.4 71.4 62 94 9.53 87391-32-32 2" 50 32 131.8 71.4 62 114.3 9.53 87391-40-32 2.1/2" 50 32 131.8 84.1 74.4 114.3 9.53 FLANGE FITTING FOR STEEL SPIRAL REINFORCED HYDRAULIC HOSE
87312
3000PSI Flange fiting for steel spirl reinforced hydraulic hoses
for steel spirl reinforced hydraulic hoses
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87312-08-08 1/2" 12 8 46 30.2 24 6.73 87312-12-08 3/4" 12 8 47 38.1 32 6.73 87312-12-10 3/4" 16 10 48 38.1 32 6.73 87312-12-12 3/4" 20 12 48 38.1 32 6.73 87312-12-16 3/4" 25 16 49 38.1 32 6.73 87312-16-12 1" 20 12 51 44.4 38 8 87312-16-16 1" 25 16 52 44.4 38 8 87312-16-20 1" 32 20 53 44.4 38 8 87312-20-16 1.1/4" 25 16 57 50.8 43 8 87312-20-20 1.1/4" 32 20 58 50.8 43 8 87312-24-20 1.1/2" 32 20 68 60.3 50 8 87312-24-24 1.1/2" 40 24 68 60.3 50 8 87312-32-24 2" 40 24 70 71.4 62 9.53 87312-32-32 2" 50 32 70 71.4 62 9.53 87312-32-40 2" 64 40 75 71.4 62 9.53 87312-40-32 2.1/2" 50 32 73 84.1 74 9.53 87312-40-40 2.1/2" 64 40 76 84.1 74 9.53 87342
3000 PSI Flange fiting or steel spirl reinforced hydraulic hoses
45 SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87342-08-08 1/2" 12 8 58.2 30.2 24 23.3 6.73 87342-12-08 3/4" 12 8 58.9 38.1 32 24 6.73 87342-12-12 3/4" 20 12 77 38.1 32 28.9 6.73 87342-16-12 1" 20 12 77 44.4 38 28.9 8 87342-16-16 1" 25 16 85.2 44.4 38 29.7 8 87342-16-20 1" 32 20 94.5 44.4 38 33.8 8 87342-20-16 1.1/4" 25 16 85.2 50.8 43 29.7 8 87342-20-20 1.1/4" 32 20 94.5 50.8 43 33.8 8 87342-24-20 1.1/2" 32 20 95.9 60.3 50 35.2 8 87342-24-24 1.1/2" 40 24 109.9 60.3 50 39.1 8 87342-32-24 2" 40 24 109.9 71.4 62 39.1 9.53 87342-32-32 2" 50 32 129.3 71.4 62 46.3 9.53 87392
3000 PSI Flange fiting for steel spiral reinforced hydraulic hoses
90 SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87392-08-08 1/2" 12 8 41 30.2 24 47 6.73 87392-12-08 3/4" 12 8 41 38.1 32 48 6.73 87392-12-12 3/4" 20 12 66.2 38.1 32 62 6.73 87392-12-16 3/4" 25 16 76.7 38.1 32 67.5 6.73 87392-16-12 1" 20 12 66.2 44.4 38 62 8 87392-16-16 1" 25 16 78 44.4 38 67.5 8 87392-16-20 1" 32 20 91.5 44.4 38 78.5 8 87392-20-16 1.1/4" 25 16 78 50.8 43 67.5 8 87392-20-20 1.1/4" 32 20 91.5 50.8 43 78.5 8 87392-20-24 1.1/4" 40 24 108.5 50.8 43 78.5 8 87392-24-20 1.1/2" 32 20 91.5 60.3 50 80.5 8 87392-24-24 1.1/2" 40 24 109.4 60.3 50 94 8 87392-32-24 2" 40 24 109.4 71.4 62 94 9.53 87392-32-32 2" 50 32 131.8 71.4 62 114.3 9.53 87392-40-32 2.1/2" 50 32 131.8 84.1 74.4 114.3 9.53 FLANGE FITTING FOR SIX WIRE SPIRAL REINFORCED HYDRAULIC HOSE
87343
3000 PSI Flange fiting for steel spiral reinforced hydraulic hoses
45 SAE FLANGE 3000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87343-08-08 1/2" 12 8 58.2 30.2 24 23.3 6.73 87343-12-08 3/4" 12 8 58.9 38.1 32 24 6.73 87343-12-12 3/4" 20 12 77 38.1 32 28.9 6.73 87343-16-12 1" 20 12 77 44.4 38 28.9 8 87343-16-16 1" 25 16 85.2 44.4 38 29.7 8 87343-16-20 1" 32 20 94.5 44.4 38 33.8 8 87343-20-16 1.1/4" 25 16 85.2 50.8 43 29.7 8 87343-20-20 1.1/4" 32 20 94.5 50.8 43 33.8 8 87343-24-20 1.1/2" 32 20 95.9 60.3 50 35.2 8 87343-24-24 1.1/2" 40 24 109.9 60.3 50 39.1 8 87343-32-24 2" 40 24 109.9 71.4 62 39.1 9.53 87343-32-32 2" 50 32 129.3 71.4 62 46.3 9.53 87393
90 SAE 3000 PSI
90 SAE FLANGE 3000PSI for interlock hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87393-08-08 1/2" 12 8 41 30.2 24 47 6.73 87393-12-08 3/4" 12 8 41 38.1 32 48 6.73 87393-12-12 3/4" 20 12 66.2 38.1 32 62 6.73 87393-12-16 3/4" 25 16 76.7 38.1 32 67.5 6.73 87393-16-12 1" 20 12 66.2 44.4 38 62 8 87393-16-16 1" 25 16 78 44.4 38 67.5 8 87393-16-20 1" 32 20 91.5 44.4 38 78.5 8 87393-20-16 1.1/4" 25 16 78 50.8 43 67.5 8 87391-20-20 1.1/4" 32 20 91.5 50.8 43 78.5 8 87393-20-24 1.1/4" 40 24 108.5 50.8 43 78.5 8 87393-24-20 1.1/2" 32 20 91.5 60.3 50 80.5 8 87393-24-24 1.1/2" 40 24 109.4 60.3 50 94 8 87393-32-24 2" 40 24 109.4 71.4 62 94 9.53 87393-32-32 2" 50 32 131.8 71.4 62 114.3 9.53 87393-40-32 2.1/2" 50 32 131.8 84.1 74.4 114.3 9.53
-
