Metric Bite Type Tube Adapter
1C/1D
STRAIGHT FITTINGS
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 D2 l1 L1 S1 S2 S3 1C-12 M12X1.5 M12X1.5 6 6 10 39 12 14 14 31.5 1C-14 M14X1.5 M14X1.5 8 8 11 40 14 17 17 L 1C-16 M16X1.5 M16X1.5 10 10 13 42 17 19 19 1C-18 M18X1.5 M18X1.5 12 12 14 43 19 22 22 1C-22 M22X1.5 M22X1.5 15 15 16 46 24 27 27 1C-26 M26X1.5 M26X1.5 18 18 16 48 27 32 32 1C-30 M30X2 M30X2 22 22 20 52 32 36 36 16 1C-36 M36X2 M36X2 28 28 21 54 41 41 41 L 1C-45 M45X2 M45X2 35 35 20 63 46 50 50 1C-52 M52X2 M52X2 42 42 21 66 55 60 60 1D-14 M14X1.5 M14X1.5 6 6 16 45 14 17 17 63 1D-16 M16X1.5 M16X1.5 8 8 18 47 17 19 19 S 1D-18 M18X1.5 M18X1.5 10 10 17 49 19 22 22 1D-20 M20X1.5 M20X1.5 12 12 19 51 22 24 24 1D-22 M22X1.5 M22X1.5 14 14 22 57 24 27 27 1D-24 M24X1.5 M24X1.5 16 16 21 57 27 30 30 40 1D-30 M30X2 M30X2 20 20 23 66 32 36 36 S 1D-36 M36X2 M36X2 25 25 26 74 41 46 46 1D-42 M42X2 M42X2 30 30 27 80 46 50 50 1D-52 M52X2 M52X2 38 38 29 90 55 60 60 31.5 S Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.for example 1C-30RN.
1C9/1D9
90 ELBOW FITTINGS
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 D2 l1,l2 L1,L2 S1 S2,S3 1C9-12 M12X1.5 M12X1.5 6 6 12 27 12 14 31.5 1C9-14 M14X1.5 M14X1.5 8 8 14 29 12 17 1C9-16 M16X1.5 M16X1.5 10 10 15 30 14 19 L 1C9-18 M18X1.5 M18X1.5 12 12 17 32 17 22 1C9-22 M22X1.5 M22X1.5 15 15 21 36 19 27 1C9-26 M26X1.5 M26X1.5 18 18 23.5 40 24 32 1C9-30 M30X2 M30X2 22 22 27.5 44 27 36 16 1C9-36 M36X2 M36X2 28 28 30.5 47 36 41 1C9-45 M45X2 M45X2 35 35 34.5 56 41 50 L 1C9-52 M52X2 M52X2 42 42 40 63 50 60 1D9-14 M14X1.5 M14X1.5 6 6 16 31 12 17 63 1D9-16 M16X1.5 M16X1.5 8 8 17 32 14 19 1D9-18 M18X1.5 M18X1.5 10 10 17.5 34 17 22 S 1D9-20 M20X1.5 M20X1.5 12 12 21.5 38 17 24 1D9-22 M22X1.5 M22X1.5 14 14 22 40 19 27 1D9-24 M24X1.5 M24X1.5 16 16 24.5 43 24 30 40 1D9-30 M30X2 M30X2 20 20 26.5 48 27 36 1D9-36 M36X2 M36X2 25 25 30 54 36 46 S 1D9-42 M42X2 M42X2 30 30 35.5 62 41 50 31.5 1D9-52 M52X2 M52X2 38 38 41 72 50 60 S Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1C9-30RN.
1CB/1DB
BSP THREAD 60 CONE SEALIN OR BONDED SEAL STUD ENDS
P/N THREAD TUBE O.D. DIMENSIONS E F D1 B l1 L1 L S1 S2 1CB-12-02 M12X1.5 G1/8"X28 6 10 8 23 24 14 14 1CB-12-04 M12X1.5 G1/4"X19 6 12 9 24 28 19 14 1CB-14-02 M14X1.5 G1/8"X28 8 10 8 23 25 14 17 1CB-14-04 M14X1.5 G1/4"X19 8 12 9 25 28 19 17 1CB-14-06 M14X1.5 G3/8"X19 8 13.5 9 24 28.5 22 17 1CB-16-04 M16X1.5 G1/4"X19 10 12 10 25 28 19 19 1CB-16-06 M16X1.5 G3/8"X19 10 13.5 12.5 25 33 22 19 1CB-16-08 M16X1.5 G1/2"X14 10 16 11 26 32 27 19 1CB-18-04 M18X1.5 G1/4"X19 12 12 10 25 29 19 22 1CB-18-06 M18X1.5 G3/8"X19 12 13.5 10 25 30.5 22 22 1CB-18-08 M18X1.5 G1/2"X14 12 16 11 26 33 27 22 1CB-22-06 M22X1.5 G3/8"X19 15 13.5 11 26 31.5 24 27 1CB-22-08 M22X1.5 G1/2"X14 15 16 12 27 34 27 27 1CB-26-08 M26X1.5 G1/2"X14 18 16 11.5 28 35 27 32 1CB-26-12 M26X1.5 G3/4"X14 18 18.5 11.5 28 35.5 32 32 1CB-30-12 M30X2 G3/4"X14 22 18.5 13.5 30 39.5 32 36 1CB-36-16 M36X2 G1"X11 28 20.5 14.5 31 42.5 41 41 1CB-45-20 M45X2 G1.1/4"X11 35 20.5 15.5 37 45.5 50 50 1CB-52-24 M52X2 G1.1/2"X11 42 23 16 39 50 55 60 1DB-14-04 M14X1.5 G1/4"X19 6 12 13 28 30 19 17 1DB-16-04 M16X1.5 G1/4"X19 8 12 13 28 32 19 19 1DB-16-06 M16X1.5 G3/8"X19 8 13.5 15 32 35.5 22 19 1DB-18-04 M18X1.5 G1/4"X19 10 12 12.5 29 32 19 22 1DB-18-06 M18X1.5 G3/8"X19 10 13.5 14.5 31 33.5 22 22 1DB-18-08 M18X1.5 G1/2"X14 10 16 14.5 31 36 27 22 1DB-20-04 M20X1.5 G1/4"X19 12 12 14.5 31 34 22 24 1DB-20-06 M20X1.5 G3/8"X19 12 13.5 14.5 31 35.5 22 24 1DB-20-08 M20X1.5 G1/2"X14 12 16 14.5 31 38 27 24 1DB-22-08 M22X1.5 G1/2"X14 14 16 16 34 40 27 27 1DB-24-06 M24X1.5 G3/8"X19 16 13.5 15.5 34 37.5 27 30 1DB-24-08 M24X1.5 G1/2"X14 16 16 15.5 34 40 27 30 1DB-24-12 M24X1.5 G3/4"X14 16 18.5 17.5 36 44.5 32 30 1DB-30-12 M30X2 G3/4"X14 20 18.5 17.5 39 48.5 32 36 1DB-36-08 M36X2 G1/2"X14 25 16 19 43 48 38 46 1DB-36-12 M36X2 G3/4"X14 25 18.5 19 43 50.5 38 46 1DB-36-16 M36X2 G1"X11 25 20.5 20 44 52.5 41 46 1DB-42-20 M42X2 G1.1/4"X11 30 20.5 21.5 48 54.5 50 50 Note : In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DB-20-08RN.
1CB9
BSP THREAD 60 CONE SEALING 90 ELBOW
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 l1 L1 L2 S1 S2 1CB9-12-04 M12X1.5 G1/4"X19 6 15.5 30.5 24.5 14 14 31.5
L1CB9-14-04 M14X1.5 G1/4"X19 8 15.5 30.5 24.5 14 17 1CB9-14-06 M14X1.5 G3/8"X19 8 16.5 31.5 27.5 16 17 1CB9-16-04 M16X1.5 G1/4"X19 10 17.5 32.5 26.5 16 19 1CB9-16-06 M16X1.5 G3/8"X19 10 17.5 32.5 27.5 16 19 1CB9-16-08 M16X1.5 G1/2"X14 10 21 36 34.5 22 19 1CB9-18-04 M18X1.5 G1/4"X19 12 19 34 27.5 19 22 1CB9-18-06 M18X1.5 G3/8"X19 12 19 36 28.5 19 22 1CB9-18-08 M18X1.5 G1/2"X14 12 21 35.5 34.5 22 22 1CB9-22-06 M22X1.5 G3/8"X19 15 22 37 31 22 27 1CB9-22-08 M22X1.5 G1/2"X14 15 22 37 34.5 22 27 1CB9-26-08 M26X1.5 G1/2"X14 18 25.5 42 37.5 27 32 1CB9-30-12 M30X2 G3/4"X14 22 29.5 ?46 41 30 36 16
L1CB9-36-16 M36X2 G1"X11 28 33.3 49.8 47.5 36 41 1CB9-45-20 M45X2G 1.1/4"X11 35 39.2 60.7 54.5 48 50 1CB9-52-24 M52X2G 1.1/2"X11 42 44.8 67.8 63 55 60 1DB9-14-04 M14X1.5 G1/4"X19 6 17.5 32.5 24.5 14 17 63
S1DB9-16-04 M16X1.5 G1/4"X19 8 18.7 33.7 26.5 16 19 1DB9-16-06 M16X1.5 G3/8"X19 8 18.7 33.7 27.5 16 19 1DB9-18-04 M18X1.5 G1/4"X19 10 19.5 36 27.5 19 22 1DB9-18-06 M18X1.5 G3/8"X19 10 19.5 36 28.5 19 22 1DB9-18-08 M18X1.5 G1/2"X14 10 21.5 38 34.5 22 22 1DB9-20-04 M20X1.5 G1/4"X19 12 19.5 36 27.5 19 24 1DB9-20-06 M20X1.5 G3/8"X19 12 19.5 36 28.5 19 24 1DB9-20-08 M20X1.5 G1/2"X14 12 21.5 38 34.5 22 24 1DB9-22-08 M22X1.5 G1/2"X14 14 23 41 34.5 22 27 1DB9-24-06 M24X1.5 G3/8"X19 16 24 42.5 32 24 30 40
S1DB9-24-08 M24X1.5 G1/2"X14 16 24 42.5 35 24 30 1DB9-24-12 M24X1.5 G3/4"X14 16 26 44.5 40 27 30 1DB9-30-12 M30X2 G3/4"X14 20 28.3 49.8 41 30 36 1DB9-36-08 M36X2 G1/2"X14 25 32.8 56.8 42.5 36 46 1DB9-36-12 M36X2 G3/4"X14 25 32.8 56.8 43.5 36 46 1DB9-36-16 M36X2 G1"X11 25 32.8 56.8 47.5 36 46 1DB9-42-20 M42X2G 1.1/4"X11 30 36.2 62.7 50.5 41 50 1DB9-52-24 M52X2G 1.1/2"X11 38 45.8 76.8 63 55 60 31.5
SNote:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DB9-24-12RN.
1CJ/1DJ
JIC 74 CONE SEALING
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 l1 L1 L2 S1 S2 1CJ-12-04 M12X1.5 7/16"X20 6 14 9 24 14 14 31.5
L1CJ-14-04 M14X1.5 7/16"X20 8 14 8 23 15 17 1CJ-14-06 M14X1.5 9/16"X18 8 14.1 8 23 15 17 1CJ-16-06 M16X1.5 9/16"X18 10 14.1 9 24 17 19 1CJ-18-06 M18X1.5 9/16"X18 12 14.1 10 25 19 22 1CJ-18-08 M18X1.5 3/4"X16 12 16.7 10 25 22 22 1CJ-22-08 M22X1.5 3/4"X16 15 16.7 10.8 26 24 27 1CJ-22-10 M22X1.5 7/8"X14 15 19.3 11 26 24 27 1CJ-26-10 M26X1.5 7/8"X14 18 19.3 11.5 28 27 32 1CJ-26-12 M26X1.5 1.1/16"X12 18 21.9 11.6 28 30 32 1CJ-30-12 M30X2 1.1/16"X12 22 21.9 13.5 30 32 36 1CJ-36-16 M36X2 1.5/16"X12 28 23.1 14.5 31 41 41 16
L1CJ-45-20 M45X2 1.5/8"X12 35 24.3 14.5 36 46 50 1CJ-52-20 M52X2 1.5/8"X12 42 24.3 16 39 55 60 1CJ-52-24 M52X2 1.7/8"X12 42 27.5 16 39 55 60 1DJ-14-04 M14X1.5 7/16"X20 6 14 11 26 14 14 63
S1DJ-16-04 M16X1.5 7/16"X20 8 14 13 28 17 19 1DJ-16-06 M16X1.5 9/16"X18 8 14.1 12.9 28 17 34 1DJ-18-04 M18X1.5 7/16"X20 10 14 12.5 29 19 22 1DJ-18-06 M18X1.5 9/16"X18 10 14.1 12.5 29 19 22 1DJ-20-06 M20X1.5 9/16"X18 12 14.1 14.5 31 22 24 1DJ-20-08 M20X1.5 3/4"X16 12 16.7 14.3 31 22 24 1DJ-22-08 M22X1.5 3/4"X16 14 16.7 16 34 24 27 1DJ-24-08 M24X1.5 3/4"X16 16 16.7 15.5 34 27 30 40
S1DJ-24-10 M24X1.5 7/8"X14 16 19.3 15.5 34 27 30 1DJ-30-12 M30X2 1.1/16"X12 20 21.9 17.5 39 32 36 1DJ-36-12 M36X2 1.1/16"X12 25 21.9 19 43 38 46 1DJ-36-16 M36X2 1.5/16"X12 25 23.1 19 43 38 46 1DJ-42-20 M42X2 1.5/8"X12 30 24.3 20.5 47 46 50 1DJ-52-24 M52X2 1.7/8"X12 38 27.5 23 54 55 60 31.5
SNote:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1CJ-24-12RN.
1CN
NPT MALE
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 l1 L1 S1 S2 1CN-08-02 M8X1 Z1/8"X27 4 14.4 24.4 11 10 10
L1CN-10-02A M10X1 Z1/8"X27 6 12.9 24.4 11 12 1CN-12-02A M12X1 Z1/8"X27 8 13.9 25.4 12 14 1CN-12-02 M12X1.5 Z1/8"X27 6 13.4 28.4 12 14 25
L1CN-12-04 M12X1.5 Z1/4"X18 6 17.2 32.2 17 14 1CN-14-04 M14X1.5 Z1/4"X18 8 17.2 32.2 14 17 1CN-16-04 M16X1.5 Z1/4"X18 10 18.2 33.2 17 19 1CN-16-06 M16X1.5 Z3/8"X18 10 19.9 53 19 19 1CN-18-04 M18X1.5 Z1/4"X18 12 19.2 34.2 19 22 1CN-18-06 M18X1.5 Z3/8"X18 12 19.9 34.9 19 22 1CN-18-08 M18X1.5 Z1/2"X14 12 21.4 36.4 22 22 1CN-22-08 M22X1.5 Z1/2"X14 15 22.4 37.4 24 27 1CN-22-20 M22X1.5 Z1.1/4"X11.5 15 29.8 37.4 46 27 1CN-26-08 M26X1.5 Z1/2"X14 18 22.9 39.4 27 32 16
L1CN-26-12 M26X1.5 Z3/4"X14 18 22.4 38.9 30 32 1CN-30-12 M30X2 Z3/4"X14 22 24.4 40.9 32 36 1CN-36-16 M36X2 Z1"X11.5 28 29.8 46.3 41 41 1CN-36-20 M36X2 Z1.1/4"X11.5 28 31.3 46.3 46 41 1CN-45-20 M45X2 Z1.1/4"X11.5 35 30.3 51.8 46 50 1CN-52-20 M52X2 Z1.1/4"X11.5 42 31.8 55.8 55 60 1CN-52-24 M52X2 Z1.1/2"X11.5 42 32.8 55.8 55 60 1DN-14-04 M14X1.5 Z1/4"X18 6 22.2 37.2 17 17 40
S1DN-16-04 M16X1.5 Z1/4"X18 8 22.2 37.2 17 19 1DN-18-04 M18X1.5 Z1/4"X18 10 21.7 38.2 19 22 1DN-18-06 M18X1.5 Z3/8"X18 10 22.4 38.9 19 22 1DN-20-04 M20X1.5 Z1/4"X18 12 23.7 40.2 22 24 1DN-20-06 M20X1.5 Z3/8"X18 12 24.4 40.9 22 24 1DN-20-08 M20X1.5 Z1/2"X14 12 25.9 42.4 22 24 1DN-22-08 M22X1.5 Z1/2"X14 14 27.4 45.4 24 27 1DN-24-08 M24X1.5 Z1/2"X14 16 26.9 45.4 27 30 1DN-30-12 M30X2 Z3/4"X14 20 28.4 49.9 32 36 25
S1DN-36-16 M36X2 Z1"X11.5 25 35.3 59.3 41 46 1DN-42-16 M42X2 Z1"X11.5 25 35.8 59.3 46 46 1DN-42-20 M42X2 Z1.1/4"X11.5 30 36.3 62.8 46 50 1DN-52-24 M52X2 Z1.1/2"X11.5 38 39.8 70.8 55 60 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DN-30-12RN.
1CN9
90 ELBOW NPT MALE
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 l1 L1 L2 S1 S2 1CN9-12-02 M12X1.5 Z1/8"X27 6 13 28 21 11 14 25
L1CN9-12-04 M12X1.5 Z1/4"X18 6 15.5 30.5 25.5 14 14 1CN9-14-04 M14X1.5 Z1/4"X18 8 15.5 30.5 25.5 14 17 1CN9-16-06 M16X1.5 Z3/8"X18 10 17.5 32.5 29.5 16 19 1CN9-18-04 M18X1.5 Z1/4"X18 12 19 34 28 19 22 1CN9-18-06 M18X1.5 Z3/8"X18 12 19 34 31 19 22 1CN9-18-08 M18X1.5 Z1/2"X14 12 21 36 36.7 22 22 1CN9-22-08 M22X1.5 Z1/2"X14 15 22 37 36.7 22 27 1CN9-26-08 M26X1.5 Z1/2"X14 18 25.5 42 40 27 32 16
S1CN9-26-12 M26X1.5 Z3/4"X14 18 25.5 42 44 27 32 1CN9-30-12 M30X2 Z3/4"X14 22 29.3 45.8 45 30 36 1CN9-36-16 M36X2 Z1"X11.5 28 33.3 49.8 51.5 36 41 1CN9-45-20 M45X2 Z1.1/4"X11.5 35 39.2 60.7 63 48 50 1CN9-52-24 M52X2 Z1.1/2"X11.5 42 44.8 67.8 65 55 60 1DN9-14-04 M14X1.5 Z1/4"X18 6 17.5 32.5 25.5 14 17 40
S1DN9-16-04 M16X1.5 Z1/4"X18 8 18.5 33.7 26.5 16 19 1DN9-18-06 M18X1.5 Z3/8"X18 10 19.5 36 31 19 22 1DN9-20-04 M20X1.5 Z1/4"X18 12 19.5 36 28 19 24 1DN9-20-06 M20X1.5 Z3/8"X18 12 19.5 36 31 19 24 1DN9-22-08 M22X1.5 Z1/2"X14 14 23 41 36.7 22 27 1DN9-24-08 M24X1.5 Z1/2"X14 16 24 42.5 37.5 24 30 1DN9-30-12 M30X2 Z3/4"X14 20 28 49.8 45 30 36 25
S1DN9-36-16 M36X2 Z1"X11.5 25 32.8 56.8 51.5 36 46 1DN9-42-16 M42X2 Z1"X11.5 25 36.2 62.7 54.5 41 46 1DN9-42-20 M42X2 Z1.1/4"X11.5 30 36.2 62.7 54.5 41 50 1DN9-52-24 M52X2 Z1.1/2"X11.5 38 45.8 76.8 65 55 60 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DN9-30-12RN.
1CO
UN UNF THREAD STUD ENDS WITH O-RING SEALING
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D1 B l1 L1 S1 S2 1CO-14-04 M14X1.5 7/16"X20 8 9 10 25 17 17 31.5
L1CO-16-04 M16X1.5 7/16"X20 10 9 11 26 17 19 1CO-18-06 M18X1.5 9/16"X18 12 10 11 28 19 22 1CO-18-08 M18X1.5 3/4"X16 12 11 13 28 24 22 1CO-18-10 M18X1.5 7/8"X14 12 12.7 14.3 29 27 22 1CO-22-08 M22X1.5 3/4"X16 15 11 14 29 24 27 1CO-22-10 M22X1.5 7/8"X14 15 12.7 15.3 30 27 27 1CO-22-12 M26X1.5 3/4"X16 15 15.09 11.91 30 27 27 1CO-26-08 M26X1.5 3/4"X16 18 11 14.5 31 27 32 1CO-26-10 M26X1.5 7/8"X14 18 12.7 14.8 31 27 32 1CO-30-08 M30X2 3/4"X16 18 11.13 13.87 33 32 36 16
S1CO-30-10 M30X2 7/8"X14 22 12.7 16.8 33 32 36 1CO-30-12 M30X2 1.1/16"X12 22 15 16.5 33 32 36 1CO-30-16 M30X2 1.5/16"X12 22 15 17.5 34 41 36 1CO-36-12 M36X2 1.1/16"X12 28 15.09 14.41 34 41 41 1CO-36-16 M36X2 1.5/16"X12 28 15 17.5 34 41 41 1CO-45-16 M45X2 1.5/16"X12 35 15 17.5 39 46 50 1CO-45-20 M45X2 1.5/8"X12 35 15.09 16.41 39 50 50 1CO-52-20 M52X2 1.5/8"X12 42 15.09 15.91 42 55 60 1DO-16-04 M16X1.5 7/16"X20 8 9 15 30 17 19 63
S1DO-18-06 M18X1.5 9/16"X18 10 10 14.5 31 19 22 1DO-20-06 M20X1.5 9/16"X18 12 10 14.5 31 22 24 1DO-20-08 M20X1.5 3/4"X16 12 11 17.5 34 24 24 1DO-24-08 M24X1.5 3/4"X16 16 11 15.5 34 24 30 40
S1DO-24-10 M24X1.5 7/8"X14 16 12.7 18.8 37 27 30 1DO-30-08 M30X2 3/4"X16 20 11 20.5 42 32 36 1DO-30-10 M30X2 7/8"X14 20 12.7 20.8 42 32 36 1DO-30-12 M30X2 1.1/16"X12 20 15 20.5 42 32 36 1DO-36-12 M36X2 1.1/16"X12 25 15.09 19.91 47 41 46 1DO-36-16 M36X2 1.5/16"X12 25 15 23 47 41 46 1DO-42-16 M42X2 1.5/16"X12 30 15 23.5 50 46 50 1DO-42-20 M42X2 1.5/8"X12 30 15 23.5 50 50 50 1DO-52-20 M52X2 1.5/8"X12 38 15.09 22.9 53.9 55 60 31.5
SNote:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1CO-24-12RN.
1CT9-SP/RN
90 ELBOW BSPT MALE
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D l1 L1 L2 S1 S2 1CT9-12-02SP M12x1.5 R1/8"x28 6 13 28 21 11 14 25
L1CT9-12-04SP M12x1.5 R1/4"x19 6 15.5 30.5 25.5 14 14 1CT9-14-04SP M14x1.5 R1/8"x28 8 15.5 30.5 23.5 14 17 1CT9-14-06SP M14x1.5 R1/4"x19 8 15.5 30.5 25.5 14 17 1CT9-16-04SP M16x1.5 R1/4"x19 10 17.5 32.5 26.5 16 19 1CT9-16-06SP M16x1.5 R3/8"x19 10 17.5 32.5 28.5 16 19 1CT9-16-08SP M16x1.5 R1/2"x14 10 21 36 36 22 19 1CT9-18-04SP M18x1.5 R1/4"x19 12 21 34 28 19 22 1CT9-18-06SP M18x1.5 R3/8"x19 12 19 34 30.5 19 22 1CT9-18-08SP M18x1.5 R1/2"x14 12 21 36 36 22 22 1CT9-22-06SP M22x1.5 R3/8"x19 15 22 37 32.5 22 27 1CT9-22-08SP M22x1.5 R1/2"x14 15 22 37 36 22 27 1CT9-22-12SP M22x1.5 R3/4"x14 15 25.5 40.5 43.5 27 27 16
L1CT9-26-08SP M26x1.5 R1/2"x14 18 25.5 42 39.5 27 32 1CT9-26-12SP M26x1.5 R3/4"x14 18 25.5 42 43.5 27 32 1CT9-30-12SP M30x2 R3/4"x14 22 29.5 45.8 45.3 30 36 1CT9-30-16SP M30x2 R1"x11 22 31.5 48 50 33 36 1CT9-36-16SP M36x2 R1"x11 28 33.3 49.8 52 36 41 1CT9-36-20SP M36x2 R1.1/4"x11 28 36.2 52.7 57 41 41 1CT9-45-20SP M45x2 R1.1/4"x11 35 39.2 60.7 61 48 50 1CT9-52-24SP M52x2 R1.1/2"x11 42 44.8 67.8 68 55 60 1DT9-14-04SP M14x1.5 R1/4"x19 6 17.5 32.5 25.5 14 17 40
S1DT9-16-04SP M16x1.5 R1/4"x19 8 18.5 33.7 26.5 16 19 1DT9-18-06SP M18x1.5 R3/8"x19 10 19.5 36 30.5 19 22 1DT9-20-04SP M20x1.5 R1/4"x19 12 19.5 36 28 19 24 1DT9-20-06SP M20x1.5 R3/8"x19 12 19.5 36 30.5 19 24 1DT9-22-06SP M22x1.5 R3/8"x19 14 23 41 32.5 22 27 1DT9-22-08SP M22x1.5 R1/2"x14 14 23 41 36 22 27 1DT9-24-06SP M24x1.5 R3/8"x19 16 24.1 42.6 33.5 24 30 1DT9-24-08SP M24x1.5 R1/2"x14 16 24.1 42.5 37.3 24 30 1DT9-30-12SP M30x2 R3/4"x14 20 28.3 49.5 45.3 32 36 25
S1DT9-36-12SP M36x2 R3/4"x14 25 33.3 53.5 52 38 46 1DT9-36-16SP M36x2 R1"x11 25 34.1 58.1 52.5 38 46 1DT9-42-16SP M42x2 R1"x11 30 35.6 62.1 56.5 46 50 1DT9-42-20SP M42x2 R1.1/4"x11 30 34.3 60.8 57 46 50 1DT9-52-20SP M52x2 R1.1/4"x11 38 36.8 67.8 67 55 60 1DT9-52-24SP M52x2 R1.1/2"x11 38 36.8 67.8 68 55 60 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DT9-22-08SP/RN.
1CT9-SP/RN
90 ELBOW BSPT MALE
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D l1 L1 L2 S1 S2 1CT9-12-02SP M12x1.5 R1/8"x28 6 13 28 21 11 14 25
L1CT9-12-04SP M12x1.5 R1/4"x19 6 15.5 30.5 25.5 14 14 1CT9-14-04SP M14x1.5 R1/8"x28 8 15.5 30.5 23.5 14 17 1CT9-14-06SP M14x1.5 R1/4"x19 8 15.5 30.5 25.5 14 17 1CT9-16-04SP M16x1.5 R1/4"x19 10 17.5 32.5 26.5 16 19 1CT9-16-06SP M16x1.5 R3/8"x19 10 17.5 32.5 28.5 16 19 1CT9-16-08SP M16x1.5 R1/2"x14 10 21 36 36 22 19 1CT9-18-04SP M18x1.5 R1/4"x19 12 21 34 28 19 22 1CT9-18-06SP M18x1.5 R3/8"x19 12 19 34 30.5 19 22 1CT9-18-08SP M18x1.5 R1/2"x14 12 21 36 36 22 22 1CT9-22-06SP M22x1.5 R3/8"x19 15 22 37 32.5 22 27 1CT9-22-08SP M22x1.5 R1/2"x14 15 22 37 36 22 27 1CT9-22-12SP M22x1.5 R3/4"x14 15 25.5 40.5 43.5 27 27 16
L1CT9-26-08SP M26x1.5 R1/2"x14 18 25.5 42 39.5 27 32 1CT9-26-12SP M26x1.5 R3/4"x14 18 25.5 42 43.5 27 32 1CT9-30-12SP M30x2 R3/4"x14 22 29.5 45.8 45.3 30 36 1CT9-30-16SP M30x2 R1"x11 22 31.5 48 50 33 36 1CT9-36-16SP M36x2 R1"x11 28 33.3 49.8 52 36 41 1CT9-36-20SP M36x2 R1.1/4"x11 28 36.2 52.7 57 41 41 1CT9-45-20SP M45x2 R1.1/4"x11 35 39.2 60.7 61 48 50 1CT9-52-24SP M52x2 R1.1/2"x11 42 44.8 67.8 68 55 60 1DT9-14-04SP M14x1.5 R1/4"x19 6 17.5 32.5 25.5 14 17 40
S1DT9-16-04SP M16x1.5 R1/4"x19 8 18.5 33.7 26.5 16 19 1DT9-18-06SP M18x1.5 R3/8"x19 10 19.5 36 30.5 19 22 1DT9-20-04SP M20x1.5 R1/4"x19 12 19.5 36 28 19 24 1DT9-20-06SP M20x1.5 R3/8"x19 12 19.5 36 30.5 19 24 1DT9-22-06SP M22x1.5 R3/8"x19 14 23 41 32.5 22 27 1DT9-22-08SP M22x1.5 R1/2"x14 14 23 41 36 22 27 1DT9-24-06SP M24x1.5 R3/8"x19 16 24.1 42.6 33.5 24 30 1DT9-24-08SP M24x1.5 R1/2"x14 16 24.1 42.5 37.3 24 30 1DT9-30-12SP M30x2 R3/4"x14 20 28.3 49.5 45.3 32 36 25
S1DT9-36-12SP M36x2 R3/4"x14 25 33.3 53.5 52 38 46 1DT9-36-16SP M36x2 R1"x11 25 34.1 58.1 52.5 38 46 1DT9-42-16SP M42x2 R1"x11 30 35.6 62.1 56.5 46 50 1DT9-42-20SP M42x2 R1.1/4"x11 30 34.3 60.8 57 46 50 1DT9-52-20SP M52x2 R1.1/4"x11 38 36.8 67.8 67 55 60 1DT9-52-24SP M52x2 R1.1/2"x11 38 36.8 67.8 68 55 60 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DT9-22-08SP/RN.
1CT9-SP/RN
90 ELBOW BSPT MALE
P/N THREAD TUBE O.D. DIMENSIONS MPa E F D l1 L1 L2 S1 S2 1CT9-12-02SP M12x1.5 R1/8"x28 6 13 28 21 11 14 25
L1CT9-12-04SP M12x1.5 R1/4"x19 6 15.5 30.5 25.5 14 14 1CT9-14-04SP M14x1.5 R1/8"x28 8 15.5 30.5 23.5 14 17 1CT9-14-06SP M14x1.5 R1/4"x19 8 15.5 30.5 25.5 14 17 1CT9-16-04SP M16x1.5 R1/4"x19 10 17.5 32.5 26.5 16 19 1CT9-16-06SP M16x1.5 R3/8"x19 10 17.5 32.5 28.5 16 19 1CT9-16-08SP M16x1.5 R1/2"x14 10 21 36 36 22 19 1CT9-18-04SP M18x1.5 R1/4"x19 12 21 34 28 19 22 1CT9-18-06SP M18x1.5 R3/8"x19 12 19 34 30.5 19 22 1CT9-18-08SP M18x1.5 R1/2"x14 12 21 36 36 22 22 1CT9-22-06SP M22x1.5 R3/8"x19 15 22 37 32.5 22 27 1CT9-22-08SP M22x1.5 R1/2"x14 15 22 37 36 22 27 1CT9-22-12SP M22x1.5 R3/4"x14 15 25.5 40.5 43.5 27 27 16
L1CT9-26-08SP M26x1.5 R1/2"x14 18 25.5 42 39.5 27 32 1CT9-26-12SP M26x1.5 R3/4"x14 18 25.5 42 43.5 27 32 1CT9-30-12SP M30x2 R3/4"x14 22 29.5 45.8 45.3 30 36 1CT9-30-16SP M30x2 R1"x11 22 31.5 48 50 33 36 1CT9-36-16SP M36x2 R1"x11 28 33.3 49.8 52 36 41 1CT9-36-20SP M36x2 R1.1/4"x11 28 36.2 52.7 57 41 41 1CT9-45-20SP M45x2 R1.1/4"x11 35 39.2 60.7 61 48 50 1CT9-52-24SP M52x2 R1.1/2"x11 42 44.8 67.8 68 55 60 1DT9-14-04SP M14x1.5 R1/4"x19 6 17.5 32.5 25.5 14 17 40
S1DT9-16-04SP M16x1.5 R1/4"x19 8 18.5 33.7 26.5 16 19 1DT9-18-06SP M18x1.5 R3/8"x19 10 19.5 36 30.5 19 22 1DT9-20-04SP M20x1.5 R1/4"x19 12 19.5 36 28 19 24 1DT9-20-06SP M20x1.5 R3/8"x19 12 19.5 36 30.5 19 24 1DT9-22-06SP M22x1.5 R3/8"x19 14 23 41 32.5 22 27 1DT9-22-08SP M22x1.5 R1/2"x14 14 23 41 36 22 27 1DT9-24-06SP M24x1.5 R3/8"x19 16 24.1 42.6 33.5 24 30 1DT9-24-08SP M24x1.5 R1/2"x14 16 24.1 42.5 37.3 24 30 1DT9-30-12SP M30x2 R3/4"x14 20 28.3 49.5 45.3 32 36 25
S1DT9-36-12SP M36x2 R3/4"x14 25 33.3 53.5 52 38 46 1DT9-36-16SP M36x2 R1"x11 25 34.1 58.1 52.5 38 46 1DT9-42-16SP M42x2 R1"x11 30 35.6 62.1 56.5 46 50 1DT9-42-20SP M42x2 R1.1/4"x11 30 34.3 60.8 57 46 50 1DT9-52-20SP M52x2 R1.1/4"x11 38 36.8 67.8 67 55 60 1DT9-52-24SP M52x2 R1.1/2"x11 38 36.8 67.8 68 55 60 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 1DT9-22-08SP/RN.

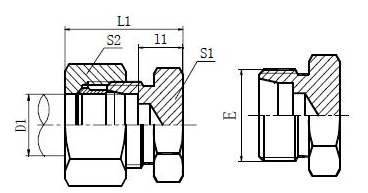

4C-RN
METRIC CUTTING RING PLUG
P/N THREAD TUBE O.D. DIMENSIONS MPa E D1 l1 L1 S1 S2 4C-12 M12x1.5 6 2 22 12 14 31.5
L4C-14 M14x1.5 8 8 23 14 17 4C-16 M16x1.5 10 9 24 17 19 4C-18 M18x1.5 12 10 25 19 22 4C-22 M22x1.5 15 11 26 24 27 4C-26 M26X1.5 18 11.5 28 27 32 4C-30 M30x2 22 13.5 30 32 36 16
L4C-36 M36x2 28 14.5 31 38 41 4C-45 M45X2 35 14.5 36 46 50 4C-52 M52X2 42 16 39 55 60 4D-14 M14X1.5 6 11 26 14 17 63
S4D-16 M16X1.5 8 13 28 17 19 4D-18 M18x1.5 10 12.5 29 19 22 4D-20 M20x1.5 12 14.5 31 22 24 4D-22 M22x1.5 14 16 34 24 27 4D-24 M24x1.5 16 15.5 34 27 30 40
S4D-30 M30x2 20 17.5 39 32 36 4D-36 M36x2 25 20 44 38 46 4D-42 M42x2 30 20.5 47 46 50 4D-52 M52X2 38 23 54 55 60 31.5
SNote:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example 4C-30RN.
AC
EQUAL TEES
P/N THREAD TUBE O.D. DIMENSIONS MPa E ,F ,G D1 , D2 ,D3 l1,l2,l3 L1,L2,L3 S1 S2,S3,S4 AC-08 M8X1 4 11 21 9 10 10
LAC-10 M10X1 5 9.5 21 9 12 AC-10A M10X1 6 9.5 21 9 12 AC-12A M12X1 8 11.5 23 12 14 AC-12 M12X1.5 6 12 27 12 14 25
LAC-14 M14X1.5 8 14 29 12 17 AC-16 M16X1.5 10 15 30 14 19 AC-18 M18X1.5 12 17 32 17 22 AC-22 M22X1.5 15 21 36 19 27 AC-26 M26X1.5 18 23.5 40 24 32 AC-30 M30X2 22 27.5 44 27 36 16
LAC-36 M36X2 28 30.5 47 36 41 AC-45 M45X2 35 34.5 56 41 50 AC-52 M52X2 42 40 63 50 60 AD-14 M14X1.5 6 16 31 12 17 63
SAD-16 M16X1.5 8 17 32 14 19 AD-18 M18X1.5 10 17.5 34 17 22 AD-20 M20X1.5 12 21.5 38 17 24 AD-22 M22X1.5 14 22 40 19 27 AD-24 M24X1.5 16 24.5 43 24 30 40
SAD-30 M30X2 20 26.5 48 27 36 AD-36 M36X2 25 30 54 36 46 AD-42 M42X2 30 35.5 62 41 50 AD-52 M52X2 38 41 72 50 60 31.5
SNote:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no. for example AC-22RN.
NL/NSRETAINING NUTS
P/N THREAD TUBE O.D. DIMENSIONS MPa E C d S2 NL-12 M12X1.5 6 14.5 6 14 L NL-14 M14X1.5 8 14.5 8 17 NL-16 M16X1.5 10 15.5 10 19 NL-18 M18X1.5 12 15.5 12 22 NL-22 M22X1.5 15 17 15 27 NL-26 M26X1.5 18 18 18 32 NL-30 M30X2 22 20 22 36 NL-36 M36X2 28 21 28 41 NL-45 M45X2 35 24 35 50 NL-52 M52X2 42 24 42 60 NS-14 M14X1.5 6 16.5 6 17 S NS-16 M16X1.5 8 16.5 8 19 NS-18 M18X1.5 10 17.5 10 22 NS-20 M20X1.5 12 17.5 12 24 NS-22 M22X1.5 14 20.5 14 27 NS-24 M24X1.5 16 20.5 16 30 NS-30 M30X2 20 24 20 36 NS-36 M36X2 25 27 25 46 NS-42 M42X2 30 29 30 50 NS-52 M52X2 38 32.5 38 60 RL/RS
CUTTING RING
P/N TUBE O.D. DIMENSIONS MERO RL-06 6 SAME TO THE S SERIES L RL-08 8 RL-10 10 RL-12 12 RL-15 15 RL-18 18 RL-22 22 RL-28 28 RL-35 35 RL-42 42 RS-06 6 S RS-08 8 RS-10 10 RS-12 12
-
