Water Hose
Tube: SBR blended, black, smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, black, or red, Weather and Abrasion resistant, smooth or fluted
Applications: general water service in industry, gardens, garage spray, watering lawns.
Temperature: -30°C + 80°C
Brading: as request
Length: 40,50,60M
Packing: trans. P.V.C. film
150PSI
HOSE ID working pressure MIN BURST PRESSURE O.D. Weight length Min.Bend Rad inch mm Bar psi Bar psi mm kg/m M/roll mm 1/4 6 10 150 30 450 14.4 0.182 50 63 5/16 8 10 150 30 450 16.3 0.217 50 80 3/8 10 10 150 30 450 17.9 0.246 50 100 1/2 13 10 150 30 450 21.2 0.307 50 130 5/8 16 10 150 30 450 25 0.395 50 160 3/4 19 10 150 30 450 29.4 0.481 50 190 1 25 10 150 30 450 35.3 0.741 60 150 1 1/4 32 10 150 30 450 42.2 0.901 60 200 1 3/8 35 10 150 30 450 45.2 0.972 60 250 1 1/2 38 10 150 30 450 48.2 1.045 60 250 1 3/4 45 10 150 30 450 55.6 1.293 60 300 2 51 10 150 30 450 61.8 1.474 60 300 2 3/8 60 10 150 30 450 69 1.395 60 380 2 1/2 63 10 150 30 450 72 1.459 60 380 2 3/4 70 10 150 30 450 79 1.609 60 450 3 76 10 150 30 450 85.4 1.928 60 450 3 3/16 80 10 150 30 450 91 2.254 60 480 3 1/2 90 10 150 30 450 101 2.514 60 550 4 102 10 150 30 450 113 2.826 60 600 5 127 10 150 30 450 139 3.865 30 750 6 152 10 150 30 450 164.4 4.951 30 900 8 204 10 150 30 450 217.8 7.536 15 1400
300PSI
HOSE ID working pressure MIN BURST PRESSURE O.D. Weight length Min.Bend Rad inch mm Bar psi Bar psi mm kg/m M/roll mm 1/4 6 20 300 60 900 14.6 0.186 50 63 5/16 8 20 300 60 900 16.5 0.222 50 80 3/8 10 20 300 60 900 18.1 0.251 50 100 1/2 13 20 300 60 900 21.4 0.311 50 130 5/8 16 20 300 60 900 25.3 0.398 50 160 3/4 19 20 300 60 900 31.6 0.632 50 190 1 25 20 300 60 900 35.3 0.758 60 150 1 1/4 32 20 300 60 900 42.3 0.931 60 200 1 3/8 35 20 300 60 900 45.3 1.105 60 250 1 1/2 38 20 300 60 900 48.3 1.079 60 250 1 3/4 45 20 300 60 900 55.6 1.361 60 300 2 51 20 300 60 900 61.8 1.541 60 300 2 3/8 60 20 300 60 900 69.4 1.55 60 380 2 1/2 63 20 300 60 900 74.4 1.922 60 380 2 3/4 70 20 300 60 900 81.4 2.114 60 450 3 76 20 300 60 900 87.8 2.473 60 450 3 3/16 80 20 300 60 900 91.8 2.593 60 480 3 1/2 90 20 300 60 900 101.8 2.889 60 550 4 102 20 300 60 900 114.2 3.503 60 600 5 127 20 300 60 900 143.8 5.513 30 750 6 152 20 300 60 900 172.6 8 30 900 8 204 20 300 60 900 230.4 13.53 15 1400 Water Suction Hose

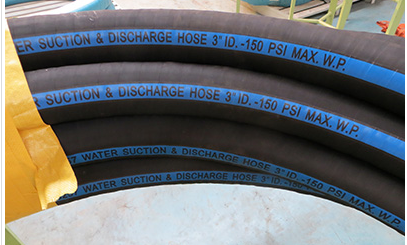

Tube: black SBR/NR compound
Reinforcement: by Nylon cord ply with 1 helix steel wire embedded.
Cover: black EPDM compound, cloth surface with water and weather resistant.
Applications: for water suction and delivery service.
Temperature: -30°C + 80°C
Packing: trans. P.V.C. film
150PSI
HOSE ID working pressure MIN BURST PRESSURE O.D. Weight length Min.Bend Rad inch mm Bar psi Bar psi mm kg/m M/roll mm 3/4 19 10 150 30 450 29.4 0.67 60 120 1 25 10 150 30 450 35.5 0.84 60 150 1 1/4 32 10 150 30 450 43.4 1.12 60 200 1 3/8 35 10 150 30 450 46.2 1.19 60 250 1 1/2 38 10 150 30 450 49.5 1.31 60 250 1 3/4 45 10 150 30 450 56.7 1.51 60 300 2 51 10 150 30 450 63 1.74 60 350 2 3/8 60 10 150 30 450 73.6 2.33 60 380 2 1/2 63 10 150 30 450 76.6 2.38 60 380 2 3/4 70 10 150 30 450 85.4 2.91 60 450 3 76 10 150 30 450 92 3.29 60 450 3 3/16 80 10 150 30 450 96 3.52 60 500 3 1/2 90 10 150 30 450 106 3.86 60 550 4 102 10 150 30 450 118.2 4.52 60 600 5 127 10 150 30 450 145.2 6.26 30 750 6 152 10 150 30 450 171.8 8.69 30 900 8 204 10 150 30 450 225 13.76 15 1150
300PSI
HOSE ID working pressure MIN BURST PRESSURE O.D. Weight length Min.Bend Rad inch mm Bar psi Bar psi mm kg/m M/roll mm 3/4 19 20 300 60 900 29.4 0.665 60 120 1 25 20 300 60 900 35.5 0.836 60 150 1 1/4 32 20 300 60 900 43.4 1.143 60 200 1 3/8 35 20 300 60 900 46.2 1.21 60 250 1 1/2 38 20 300 60 900 49.5 1.336 60 250 1 3/4 45 20 300 60 900 56.7 1.59 60 300 2 51 20 300 60 900 63 1.823 60 350 2 3/8 60 20 300 60 900 75.2 2.344 60 380 2 1/2 63 20 300 60 900 78.2 2.393 60 380 2 3/4 70 20 300 60 900 85.2 2.987 60 450 3 76 20 300 60 900 91.4 3.383 60 450 3 3/16 80 20 300 60 900 96 3.611 60 500 3 1/2 90 20 300 60 900 106.4 3.956 60 550 4 102 20 300 60 900 118.4 5.246 60 600 5 127 20 300 60 900 145.4 6.583 30 750 6 152 20 300 60 900 171.4 8.606 30 900 8 204 20 300 30 450 227 15.6 15 1150
-
