JIC 74 Cone Seal Fitting
16711

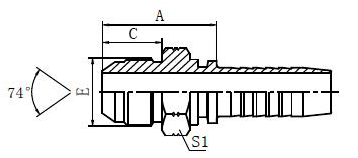

JIC MALE 74 CONE SEAL
PART NO. E HOSE BORE DIMENSIONS THREAD E DN DASH C S 16711-04-04 7/16"X20 6 4 14 12 16711-05-04 1/2"X20 6 4 14 14 16711-05-05 1/2"X20 8 5 14 14 16711-06-04 9/16"X18 6 4 14 17 16711-06-05 9/16"X18 8 5 14 17 16711-06-06 9/16"X18 10 6 14 17 16711-08-06 3/4"X16 10 6 16.7 22 16711-08-08 3/4"X16 12 8 16.7 22 16711-10-06 7/8"X14 10 6 19.3 24 16711-10-08 7/8"X14 12 8 19.3 24 16711-10-10 7/8"X14 16 10 19.3 24 16711-12-08 1.1/16"X12 12 8 22 30 16711-12-10 1.1/16"X12 16 10 22 30 16711-12-12 1.1/16"X12 20 12 22 30 16711-12-16 1.1/16"X12 25 16 22 32 16711-14-10 1.3/16"X12 16 10 22.5 32 16711-14-12 1.3/16"X12 20 12 22.5 32 16711-16-12 1.5/16"X12 20 12 23 36 16711-16-16 1.5/16"X12 25 16 23 36 16711-20-16 1.5/8"X12 25 16 24.3 46 16711-20-20 1.5/8"X12 32 20 24.3 46 16711-24-20 1.7/8"X12 32 20 27.5 50 16711-24-24 1.7/8"X12 38 24 27.5 50 16711-32-32 2.1/2"X12 51 32 34 65 Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 16712
26711

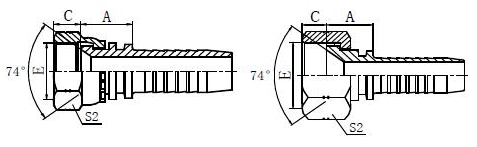

JIC FEMALE 74 CONE SEAT SEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C S2 26711-04-03 7/16"X20 5 3 14.5 9 15 26711-04-04 7/16"X20 6 4 15 9 15 26711-05-04 1/2"X20 6 4 15.5 9.5 17 26711-05-05 1/2"X20 8 5 15.5 9.5 17 26711-05-06 1/2"X20 10 6 15.5 9.5 17 26711-06-04 9/16"X18 6 4 15.5 10.5 19 26711-06-05 9/16"X18 8 5 15.5 10.5 19 26711-06-06 9/16"X18 10 6 15.5 10.5 19 26711-06-08 9/16"X18 12 8 16 10.5 19 26711-08-06 3/4"X16 10 6 17.5 11 24 26711-08-08 3/4"X16 12 8 18 11 24 26711-08-10 3/4"X16 16 10 19.5 11 24 26711-10-06 7/8"X14 10 6 18 13 27 26711-10-08 7/8"X14 12 8 18.5 13 27 26711-10-10 7/8"X14 16 10 20 13 27 26711-10-12 7/8"X14 20 12 20 13 27 26711-12-08 1.1/16"X12 12 8 20 15 32 26711-12-10 1.1/16"X12 16 10 21.5 15 32 26711-12-12 1.1/16"X12 20 12 21.5 15 32 26711-12-16 1.1/16"X12 25 16 23 15 32 26711-14-12 1.3/16"X12 20 12 21.5 15 36 26711-16-12 1.5/16"X12 20 12 21.5 16 41 26711-16-14 1.5/16"X12 22 14 21.5 16 41 26711-16-16 1.5/16"X12 25 16 23 16 41 26711-16-20 1.5/16"X12 32 20 24 16 41 26711-20-16 1.5/8"X12 25 16 24.5 17 50 26711-20-20 1.5/8"X12 32 20 26 17 50 26711-24-20 1.7/8"X12 32 20 26.5 20 55 26711-24-22 1.7/8"X12 35 22 26.5 20 55 26711-24-24 1.7/8"X12 40 24 26.5 20 55 26711-32-24T 2.1/2"X12 40 24 27 23.5 75 26711-32-32T 2.1/2"X12 50 32 27 23.5 75 26711D
JIC FEMALE 74 CONE SEAT SEAL DOUBLE HEXAGON
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 S2 26711D-04-04 7/16"X20 6 4 9 14 14 26711D-05-04 1/2"X20 6 4 9.5 17 17 26711D-06-06 9/16"X18 10 6 10.5 19 19 26711D-08-06 3/4"X16 10 6 11 24 24 26711D-08-08 3/4"X16 12 8 11 24 24 26711D-08-10 3/4"X16 16 10 11 24 24 26711D-10-08 7/8"X14 12 8 14 27 27 26711D-12-12 1.1/16"X12 20 12 15 32 32 26711D-16-12 1.5/16"X12 20 12 16 41 41 26711D-16-16 1.5/16"X12 25 16 16 41 41 26711D-20-20 1.7/16"X12 32 20 17 50 50 Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 26712D
26741
45 JIC FEMALE 74 CONE SEAT SEAL
PART NO. E HOSE BORE DIMENSIONS THREAD E DN DASH C H S1 26741-04-04 7/16"X20 6 4 9 18.1 15 26741-05-05 1/2"X20 8 5 9.5 19.3 17 26741-06-05 9/16"X18 8 5 10.5 19.3 19 26741-06-06 9/16"X18 10 6 10.5 20 19 26741-08-06 3/4"X16 10 6 11 21.4 24 26741-08-08 3/4"X16 12 8 11 23.5 24 26741-10-10 7/8"X14 16 10 13 25.3 27 26741-10-12 7/8"X14 20 12 13 28.9 27 26741-12-10 1.1/16"X12 16 10 15 26.4 32 26741-12-12 1.1/16"X12 20 12 15 30 32 26741-14-12 1.3/16"X12 20 12 15 30 36 26741-16-16 1.5/16"X12 25 16 16 31.5 41 26741-20-16 1.5/8"X12 25 16 17 32.5 50 26741-20-20 1.5/8"X12 32 20 17 36.6 50 26741-24-20 1.7/8"X12 32 20 20 36.9 55 26741-24-24 1.7/8"X12 38 24 20 41.6 55 26741-32-32 2.1/2"X12 51 32 23.5 49.5 75 Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 26742
26791
90 JIC FEMALE 74��CONE SEAT SEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C H S2 26791-04-04 7/16"X20 6 4 9 33.5 15 26791-05-05 1/2"X20 8 5 9.5 37 17 26791-06-06 9/16"X18 10 6 10.5 39.3 19 26791-08-08 3/4"X16 12 8 11 47 24 26791-10-10 7/8"X14 16 10 13 52.5 27 26791-12-12 1.1/16"X12 20 12 15 63.5 32 26791-16-16 1.5/16"X12 25 16 16 70 41 26791-20-20 1.5/8"X12 32 20 17 82.5 50 26791-24-24 1.7/8"X12 38 24 20 97.5 55 26791-32-32 2.1/2"X12 51 32 23.5 118.8 75 Note: 1.For use with braided hoses.
2. If use with spiral hoses, hose fitting series number is 26792
-
