Aluminium Pin Lug Coupling

Use for suction or discharge of water or other fluids.
Standard threading is NPSM and NPSH;
Pin-lug are all sizes of female and male end.

SIZE THREAD PART# 1-1/2" NPSM PL-150AB 2" NPSM PL-200AB 2-1/2" NPSM PL-250AB 3" NPSM PL-300AB 4" NPSM PL-400AB 6" NPSM PL-600AB

SIZE THREAD PART# 1-1/2" NPSM PL-F150AB 2" NPSM PL-F200AB 2-1/2" NPSM PL-F250AB 3" NPSM PL-F300AB 4" NPSM PL-F400AB 6" NPSM PL-F600AB

Available with aluminum + brass nut or all brass.


SIZE THREAD PART# 1-1/2" NPSM PL-M150A 2" NPSM PL-M200A 2-1/2" NPSM PL-M250A 3" NPSM PL-M300A 4" NPSM PL-M400A 6" NPSM PL-M600A

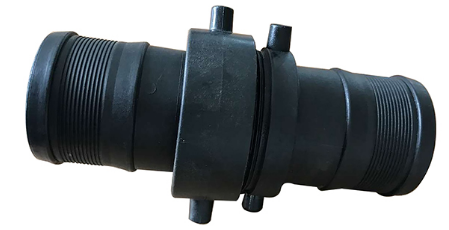

PP Pin Lug Coupling

Product name: PIN LUG HOSE SHANK COUPLING(Hose Shank Coupling/Shank Suction Coupling)
Size:1" to 6"

Type: Complete Set, Female Shank with Swivel Nut, Male Shank

Material: PP

Thread: NPSM, NPT, NPSH, NST

Working pressure: 10bar
