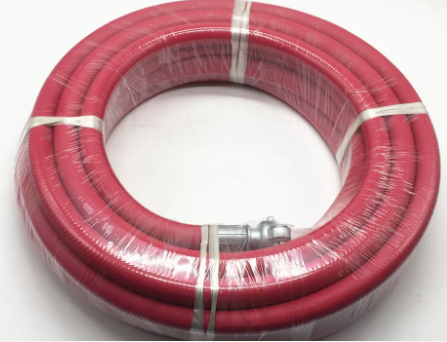

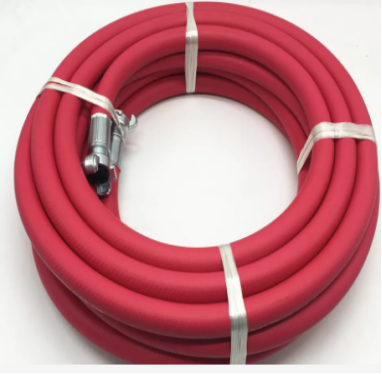

Jackhammer Hose Assembly
Tube: EPDM/SBR Blended
Spiral or braided polyester reinforcement
Cover: EPDM/SBR blended, wrapped or smooth, abrasion, ozone and sunlight resistant
WP:300psi, BP:1200psi
Temperature range of -28°F to 176°F(-33°C~80°C)
Colors available: matt red, yellow, blue, green.

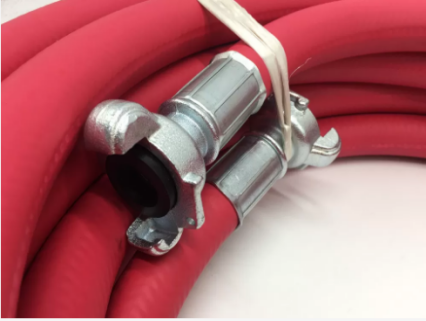

Assembly coupled with universal couplings attached with 2 Band-it clamps each end.
Standard length:50ft/ roll
Quality standard: EN 559
Application: Mainly used for air compressor and pneumatic tool.
Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Weight inch mm mm bar psi bar psi ft/pc kg/pc 3/4" 19 28 17 250 50 750 50 10 3/4" 19 28 17 250 50 750 100 19.8 3/4" 19 29 20 300 60 900 50 11 3/4" 19 29 20 300 60 900 100 21.8 1" 25.4 36 14 200 40 600 50 14.5 1" 25.4 36 14 200 40 600 100 28.8 1" 25.4 37 20 300 60 900 50 15.5 1" 25.4 37 20 300 60 900 100 30.8
-
