HOME >
Multiseal Fitting
20111

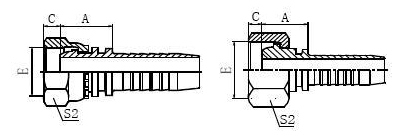

METRIC FEMALE MULTISEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C S2 20111-10-03 M10X1 5 3 18 2.5 14 20111-10-04 M10X1 6 4 18 2.5 14 20111-12-02 M12X1.5 4 2 18 4 17 20111-12-03 M12X1.5 5 3 18 4 17 20111-12-04 M12X1.5 6 4 18.5 4 17 20111-12-05 M12X1.5 8 5 18.5 4 17 20111-14-04 M14X1.5 6 4 19.5 4.5 19 20111-14-05 M14X1.5 8 5 19.5 4.5 19 20111-16-04 M16X1.5 6 4 19.5 4.5 22 20111-16-05 M16X1.5 8 5 20 4.5 22 20111-16-06 M16X1.5 10 6 20 4.5 22 20111-18-05 M18X1.5 8 5 21.5 4 24 20111-18-06 M18X1.5 10 6 21.5 4 24 20111-18-08 M18X1.5 12 8 22 4 24 20111-20-06T M20X1.5 10 6 20.5 5.5 24 20111-20-08 M20X1.5 12 8 23 5.5 27 20111-22-06 M22X1.5 10 6 23 5 27 20111-22-08 M22X1.5 12 8 23.5 5 27 20111-22-10 M22X1.5 16 10 24.5 5 27 20111-24-08T M24X1.5 12 8 22 5.5 30 20111-24-10 M24X1.5 16 10 26 5 30 20111-26-08T M26X1.5 12 8 23 5.5 32 20111-26-10 M26X1.5 16 10 26 5.5 32 20111-26-12 M26X1.5 20 12 26 5.5 32 20111-27-08T M27X1.5 12 8 23 5.5 32 20111-27-10 M27X1.5 16 10 26 5.5 32 20111-27-12 M27X1.5 20 12 26 5.5 32 20111-30-12 M30X1.5 20 12 26.5 6 36 20111-30-14 M30X1.5 22 14 26.5 6 36 20111-33-12T M33X2 20 12 26 7 41 20111-33-14 M33X2 22 14 27.5 7 41 20111-36-12T M36X2 20 12 26 7 41 20111-36-14T M36X2 22 14 26 7 41 20111-36-16 M36X2 25 16 29 7 41 20111-39-14T M39X2 22 14 28.5 7 46 20111-39-16T M39X2 25 16 29.5 7 46 20111-39-20 M39X2 32 20 30.5 7 46 20111-42-16T M42X2 25 16 30 8.5 50 20141/20141T

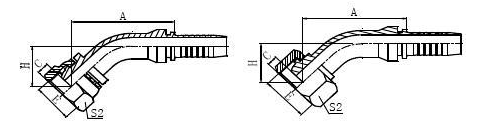

45 METRIC FEMALE MULTISEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C H S2 20141-10-03 M10X1 5 3 41.1 2.5 20.7 14 20141-14-04 M14X1.5 6 4 43.4 4.5 21.3 19 20141-16-05 M16X1.5 8 5 45.8 4.5 22.5 22 20141-18-06 M18X1.5 10 6 48.5 4 24.2 24 20141-22-08 M22X1.5 12 8 62.1 5 27.2 27 20141-26-10 M26X1.5 16 10 74.4 5.5 29.6 32 20141-26-12 M26X1.5 20 12 80.6 5.5 33.2 32 20141-27-10 M27X1.5 16 10 74.4 5.5 29.6 32 20141-30-12 M30X1.5 20 12 80.9 6 33.5 36 20141-36-14T M36X2 22 14 83 7 32.64 41 20141-39-16T M39X2 25 16 88.2 7 33.95 46 20141-45-20T M45X2 32 20 99.1 8.5 38.4 55 20141-52-24T M52X2 40 24 114.1 9 43.4 60 20191

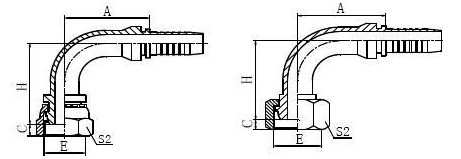

90 METRIC FEMALE MULTISEAL
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A C H S2 20191-10-03 M10X1 5 3 27 2.5 35.5 14 20191-12-03 M12X1.5 5 3 26.5 4 34.5 17 20191-12-04 M12X1.5 6 4 30 4 37.5 17 20191-14-04 M14X1.5 6 4 30 4.5 38 19 20191-16-05 M16X1.5 8 5 33 4.5 41.5 22 20191-18-06 M18X1.5 10 6 35.3 4 45.3 24 20191-20-06T M20X1.5 10 6 35.3 5.5 44.8 24 20191-20-08 M20X1.5 12 8 41 5.5 52 27 20191-22-08 M22X1.5 12 8 41 5 52.5 27 20191-26-10 M26X1.5 16 10 56.5 5.5 58.5 32 20191-27-10 M27X1.5 16 10 56.5 5.5 58.5 32 20191-30-12 M30X1.5 20 12 67.5 6 68.5 36 20191-36-12T M36X2 20 12 65.5 7 68 41 20191-36-14T M36X2 22 14 71.2 7 69 41 20191-39-16T M39X2 25 16 76.7 7 73.5 46 20191-45-20T M45X2 32 20 91.5 8.5 85 55 20191-52-24T M52X2 40 24 109.4 9 100 60 20191-64-32T M64X2 50 32 131.75 14 122.3 75
-
