SAE Code 63 Flange Fitting
FLANGE FITTING FOR STEEL SPIRAL REINFORCED HYDRAULIC HOSE
87912
SAE FLANGE 9000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87912-12-12 3/4" 20 12 57.8 41.3 32 14.3 87912-16-12 1" 20 12 62.3 47.6 38 14.3 87912-16-16 1" 25 16 63 47.6 38 14.3 87912-20-16 1.1/4" 25 16 70 54 44 14.3 87912-20-20 1.1/4" 32 20 70.5 54 44 14.3 87912-24-20 1.1/2" 32 20 77 63.5 51 14.3 87912-24-24 1.1/2" 40 24 77 63.5 51 14.3 87942

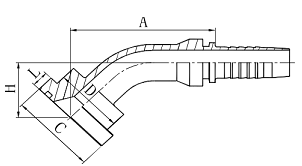

45 SAE 9000 PSI
45 SAE FLANGE 9000PSI for spiral hydraulic hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87942-12-12 3/4" 20 12 85 41.3 32 35.6 14.3 87942-16-12 1" 20 12 86.1 47.6 38 36.7 14.3 87942-16-16 1" 25 16 94 47.6 38 37.5 14.3 87942-20-20 1.1/4" 32 20 104.9 54 44 42.2 14.3 87942-24-20 1.1/2" 32 20 105.8 63.5 51 43 14.3 87942-24-24 1.1/2" 40 24 117.6 63.5 51 46.9 14.3 FLANGE FITTING FOR interlock HYDRAULIC HOSE

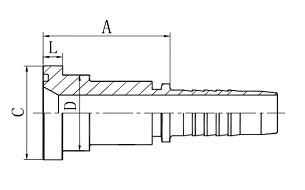

87913
SAE 9000 PSI interlock fitting
SAE FLANGE caterpillar flange
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87913-12-12 3/4" 20 12 57.8 41.3 32 14.3 87913-16-12 1" 20 12 62.3 47.6 38 14.3 87913-16-16 1" 25 16 63 47.6 38 14.3 87913-20-16 1.1/4" 25 16 70 54 44 14.3 87913-20-20 1.1/4" 32 20 70.5 54 44 14.3 87913-24-20 1.1/2" 32 20 77 63.5 51 14.3 87913-24-24 1.1/2" 40 24 77 63.5 51 14.3 87943

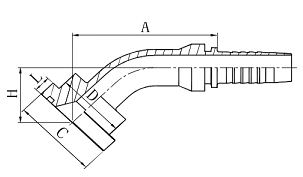

45 SAE 9000 PSI interlock fitting
45 SAE FLANGE 9000PSI for interlock hydraulic hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87943-12-12 3/4" 20 12 85 41.3 32 35.6 14.3 87943-16-12 1" 20 12 86.1 47.6 38 36.7 14.3 87943-16-16 1" 25 16 94 47.6 38 37.5 14.3 87943-20-20 1.1/4" 32 20 104.9 54 44 42.2 14.3 87943-24-20 1.1/2" 32 20 105.8 63.5 51 43 14.3 87943-24-24 1.1/2" 40 24 117.6 63.5 51 46.9 14.3 87993
90 SAE 9000 PSI interlock fitting
90 SAE FLANGE 9000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87993-12-12 3/4" 20 12 67.5 41.3 32 71.5 14.3 87993-16-12 1" 20 12 67.5 47.6 38 73 14.3 87993-16-16 1" 25 16 79 47.6 38 78.5 14.3 87993-20-20 1.1/4" 32 20 93.5 54 44 90.5 14.3 87993-24-20 1.1/2" 32 20 93.5 63.5 51 91.5 14.3 87993-24-24 1.1/2" 40 24 109.4 63.5 51 105 14.3
-
