SAE Code 62 Flange Fitting

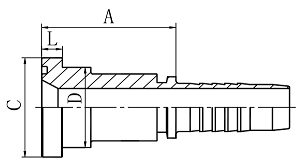

FLANGE FITTING FOR STEEL BRAID REINFORCED HYDRAULIC HOSE
87611
SAE 6000 PSI
SAE FLANGE 6000PSI for braid hydraulic hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87611-08-08 1/2" 12 8 47 31.7 24 7.75 87611-12-12 3/4" 20 12 51 41.3 32 8.76 87611-16-12 1" 20 12 56 47.6 38 9.53 87611-16-16 1" 25 16 57 47.6 38 9.53 87611-16-20 1" 32 20 61 47.6 38 9.53 87611-20-16 1.1/4" 25 16 65 54 44 10.29 87611-20-20 1.1/4" 32 20 66 54 44 10.29 87611-24-20 1.1/2" 32 20 75 63.5 51 12.57 87611-24-24 1.1/2" 40 24 75 63.5 51 12.57 87611-32-24 2" 40 24 85 79.4 67 12.57 87611-32-32 2" 50 32 85 79.4 67 12.57 87641
45 SAE 6000 PSI
45 SAE FLANGE 6000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87641-08-08 1/2" 12 8 58.9 31.7 23.9 24 7.9 87641-08-12 1/2" 20 12 74.9 31.7 23.9 27.5 7.9 87641-12-12 3/4" 20 12 79.2 41.3 31.7 31.8 8.9 87641-16-16 1" 25 16 90.2 47.6 38 34.7 9.6 87641-20-20 1.1/4" 32 20 103.8 54 43.6 41.5 10.4 87641-24-20 1.1/2" 32 20 105.8 63.5 50.8 45.1 12.7 87641-24-24 1.1/2" 40 24 116.2 63.5 50.8 45.5 12.7 87641-32-24 2" 40 24 125.4 79.4 67 54.7 12.57 87641-32-32 2" 50 32 135.7 79.4 66.5 52.7 12.7 87691
90 SAE 6000 PSI
90 SAE FLANGE 6000PSI for braid hydraulic hose

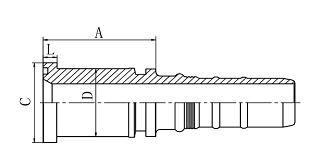

P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87691-08-08 1/2" 12 8 41 31.7 24 48 7.75 87691-12-12 3/4" 20 12 66.2 41.3 32 66 8.76 87691-16-12 1" 20 12 66.2 47.6 38 69 9.53 87691-16-16 1" 25 16 78 47.6 38 74.5 9.53 87691-16-20 1" 32 20 91.5 47.6 38 85.5 9.53 87691-20-16 1.1/4" 25 16 78 54 44 78.5 10.29 87691-20-20 1.1/4" 32 20 91.5 54 44 89.5 10.29 87691-24-20 1.1/2" 32 20 91.5 63.5 51 94.5 12.57 87691-24-24 1.1/2" 40 24 109.4 63.5 51 108 12.57 87691-32-24 2" 40 24 109.4 79.4 67 116 12.57 87691-32-32 2" 50 32 131.8 79.4 67 136.3 12.57 FLANGE FITTING FOR STEEL SPIRAL REINFORCED HYDRAULIC HOSE
87612
SAE 6000 PSI
SAE FLANGE 6000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87612-08-08 1/2" 12 8 47 31.7 24 7.75 87612-12-12 3/4" 20 12 51 41.3 32 8.76 87612-16-12 1" 20 12 56 47.6 38 9.53 87612-16-16 1" 25 16 57 47.6 38 9.53 87612-16-20 1" 32 20 61 47.6 38 9.53 87612-20-16 1.1/4" 25 16 65 54 44 10.29 87612-20-20 1.1/4" 32 20 66 54 44 10.29 87612-24-20 1.1/2" 32 20 75 63.5 51 12.57 87612-24-24 1.1/2" 40 24 75 63.5 51 12.57 87612-32-24 2" 40 24 85 79.4 67 12.57 87612-32-32 2" 50 32 85 79.4 67 12.57 87642

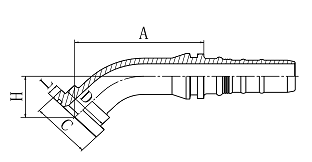

45 SAE 6000 PSI
45 SAE FLANGE 6000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87642-08-08 1/2" 12 8 58.9 31.7 23.9 24 7.9 87642-08-12 1/2" 20 12 74.9 31.7 23.9 27.5 7.9 87642-12-12 3/4" 20 12 79.2 41.3 31.7 31.8 8.9 87642-16-16 1" 25 16 90.2 47.6 38 34.7 9.6 87642-20-20 1.1/4" 32 20 103.8 54 43.6 41.5 10.4 87642-24-20 1.1/2" 32 20 105.8 63.5 50.8 45.1 12.7 87642-24-24 1.1/2" 40 24 116.2 63.5 50.8 45.5 12.7 87642-32-24 2" 40 24 125.4 79.4 67 54.7 12.57 87642-32-32 2" 50 32 135.7 79.4 66.5 52.7 12.7 87692
90 SAE 6000 PSI
90 SAE FLANGE 6000PSI for spiral hydraulic hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87692-08-08 1/2" 12 8 41 31.7 24 48 7.75 87692-12-12 3/4" 20 12 66.2 41.3 32 66 8.76 87692-16-12 1" 20 12 66.2 47.6 38 69 9.53 87692-16-16 1" 25 16 78 47.6 38 74.5 9.53 87692-16-20 1" 32 20 91.5 47.6 38 85.5 9.53 87692-20-16 1.1/4" 25 16 78 54 44 78.5 10.29 87692-20-20 1.1/4" 32 20 91.5 54 44 89.5 10.29 87692-24-20 1.1/2" 32 20 91.5 63.5 51 94.5 12.57 87692-24-24 1.1/2" 40 24 109.4 63.5 51 108 12.57 87692-32-24 2" 40 24 109.4 79.4 67 116 12.57 87692-32-32 2" 50 32 131.8 79.4 67 136.3 12.57 FLANGE interlock FITTING FOR 6 wire STEEL SPIRAL HYDRAULIC HOSE
87613
SAE 6000 PSI
SAE FLANGE 6000PSI
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D L 87613-08-08 1/2" 12 8 47 31.7 24 7.75 87613-12-12 3/4" 20 12 51 41.3 32 8.76 87613-16-12 1" 20 12 56 47.6 38 9.53 87613-16-16 1" 25 16 57 47.6 38 9.53 87613-16-20 1" 32 20 61 47.6 38 9.53 87613-20-16 1.1/4" 25 16 65 54 44 10.29 87613-20-20 1.1/4" 32 20 66 54 44 10.29 87613-24-20 1.1/2" 32 20 75 63.5 51 12.57 87613-24-24 1.1/2" 40 24 75 63.5 51 12.57 87613-32-24 2" 40 24 85 79.4 67 12.57 87613-32-32 2" 50 32 85 79.4 67 12.57 87643
45 SAE 6000 PSI
45 SAE FLANGE 6000PSI for spiral hydraulic hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87643-08-08 1/2" 12 8 58.9 31.7 23.9 24 7.9 87643-08-12 1/2" 20 12 74.9 31.7 23.9 27.5 7.9 87643-12-12 3/4" 20 12 79.2 41.3 31.7 31.8 8.9 87643-16-16 1" 25 16 90.2 47.6 38 34.7 9.6 87643-20-20 1.1/4" 32 20 103.8 54 43.6 41.5 10.4 87643-24-20 1.1/2" 32 20 105.8 63.5 50.8 45.1 12.7 87643-24-24 1.1/2" 40 24 116.2 63.5 50.8 45.5 12.7 87643-32-24 2" 40 24 125.4 79.4 67 54.7 12.57 87643-32-32 2" 50 32 135.7 79.4 66.5 52.7 12.7 87693
90 SAE 6000 PSI
90 SAE FLANGE 6000PSI for interlock hose
P/N FLANGE SIZE HOSE BORE DIMENSIONS DN DASH A C D H L 87693-08-08 1/2" 12 8 41 31.7 24 48 7.75 87693-12-12 3/4" 20 12 66.2 41.3 32 66 8.76 87693-16-12 1" 20 12 66.2 47.6 38 69 9.53 87693-16-16 1" 25 16 78 47.6 38 74.5 9.53 87693-16-20 1" 32 20 91.5 47.6 38 85.5 9.53 87693-20-16 1.1/4" 25 16 78 54 44 78.5 10.29 87693-20-20 1.1/4" 32 20 91.5 54 44 89.5 10.29 87693-24-20 1.1/2" 32 20 91.5 63.5 51 94.5 12.57 87693-24-24 1.1/2" 40 24 109.4 63.5 51 108 12.57 87693-32-24 2" 40 24 109.4 79.4 67 116 12.57 87693-32-32 2" 50 32 131.8 79.4 67 136.3 12.57
-
