Twin line welding hose (Oxygen, Acetylene)
Tube: EPDM/SBR blended, black, smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, red and blue, smooth, weather and ozone, abrasion resistant
Applications: for conveying welding gases.
Temperature: -40°C + 90°C
Branding: as request
Length: 40, 50M
Packing: trans. P.V.C. film
Standard length: 25FT, 50FT, 100FT
Bend radius: 10 times of proper diameter dimension
Joint Connection:
Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;
Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc
Brass teeth of American system (G9/16 18N), America, Middle East and South America etc.
Australian system (5/8-18N), Australia etc

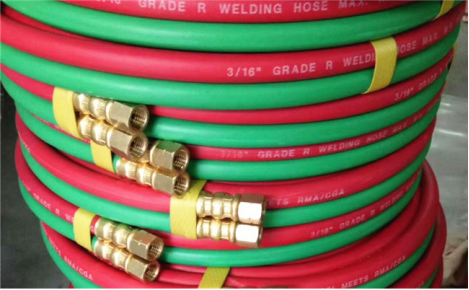

Grade R 3 / 16 Inch x 25 FT Rubber Twin Welding Hose For American Market
Specifications:
Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi FT cbm/roll Kg/roll 3/16"&3/16" 4.8 11.5 20 300 60 900 25 0.0048 2.5 3/16"&3/16" 4.8 11.5 20 300 60 900 50 0.009 4 3/16"&3/16" 4.8 11.5 20 300 60 900 100 0.018 8 1/4"&1/4" 6.4 13 20 300 60 900 25 0.005 2.9 1/4"&1/4" 6.4 13 20 300 60 900 50 0.01 5.5 1/4"&1/4" 6.4 13 20 300 60 900 100 0.02 11 5/16"&5/16" 7.9 15 20 300 60 900 25 0.007 3.45 5/16"&5/16" 7.9 15 20 300 60 900 50 0.012 6.8 5/16"&5/16" 7.9 15 20 300 60 900 100 0.022 13.5 3/8"&3/8" 9.5 17 20 300 60 900 25 0.009 4.3 3/8"&3/8" 9.5 17 20 300 60 900 50 0.015 8.1 3/8"&3/8" 9.5 17 20 300 60 900 100 0.024 15.9

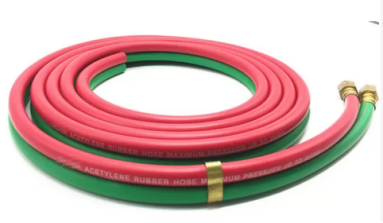

Flame Resistant 1/4'' Oxy Acetylene Welding Hoses
Grade RM 13mm Od Size
Flame Resistant 1/4'' Twin Welding Hose, Grade RM Oxy-acetylene Hose
Specifications:
Construction: Tube: EPDM Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM Synthetic Rubber
Smooth finish
Green Line for oxygen
Brown Line for fuel gas, e.g. acetylene
Applicable temperature: -25°C to +100°C
Standard length: 50m or 100m roll

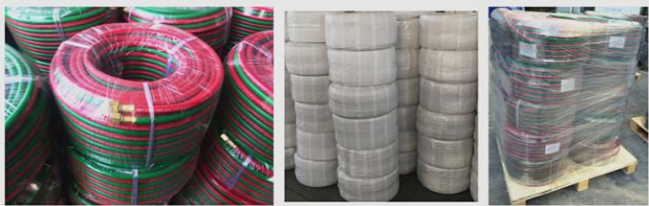

Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offer,but shall be charged additionally.
Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m 3/16"&3/16" 4.8 11.5 20 300 60 900 100 0.04 0.28 1/4"&1/4" 6.3 13 20 300 60 900 100 0.06 0.34 1/4"&5/16" 6.3+8.0 13+15 20 300 60 900 100 0.062 0.39 5/16"&5/16" 7.9 15 20 300 60 900 100 0.07 0.42 5/16"&3/8" 8+10 15+17 20 300 60 900 100 0.075 0.48 3/8"&3/8" 9.5 17 20 300 60 900 100 0.08 0.52
EN 559 1 / 4 Inch 100 M Rolls Grade R Twin Welding Hose For Gas Cutting
Construction: Tube: SBR + EPDM Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: SBR Synthetic Rubber
Appearance: Smooth finish
Green or blue outer layer of oxygen rubber hose
Red outer layer of fuel gas hose, e.g. acetylene
Applicable temperature: -25°C to +70°C
Bend radius: 10 times of proper diameter dimension
Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offered, but shall be charged additionally.

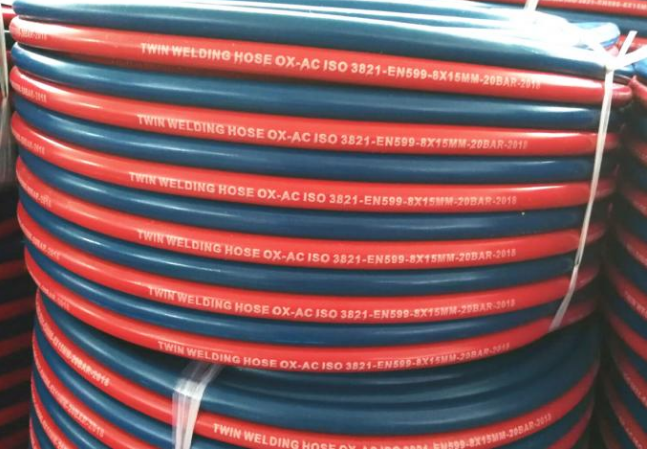

ISO 3821 Grade R Gas Welding Hose , 300Psi Twin Welding Hose
Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi ft/pc cbm/pc kg/pc 3/16"&3/16" 4.8 11.5 20 300 60 900 25 0.0048 2.5 3/16"&3/16" 4.8 11.5 20 300 60 900 50 0.009 4 3/16"&3/16" 4.8 11.5 20 300 60 900 100 0.018 8 1/4"&1/4" 6.4 13 20 300 60 900 25 0.005 2.9 1/4"&1/4" 6.4 13 20 300 60 900 50 0.01 5.5 1/4"&1/4" 6.4 13 20 300 60 900 100 0.02 11 5/16"&5/16" 7.9 15 20 300 60 900 25 0.007 3.45 5/16"&5/16" 7.9 15 20 300 60 900 50 0.012 6.8 5/16"&5/16" 7.9 15 20 300 60 900 100 0.022 13.5 3/8"&3/8" 9.5 17 20 300 60 900 25 0.009 4.3 3/8"&3/8" 9.5 17 20 300 60 900 50 0.015 8.1 3/8"&3/8" 9.5 17 20 300 60 900 100 0.024 15.9
-
