24 Cone O-ring Seal L.T. Fitting
10511

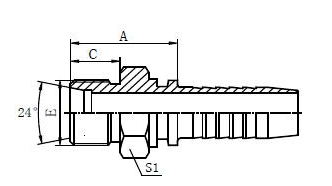

METRIC MALE 24 CONE SEAT H.T.
ISO 8434-1-DIN 3861
PART NO THREAD E HOSE BORE TUBE O.D. DIMENSIONS DN DASH C S1 10511-14-04 M14X1.5 6 4 6 13.5 17 10511-16-04 M16X1.5 6 4 8 13.5 17 10511-18-04 M18X1.5 6 4 10 13.5 19 10511-20-05 M20X1.5 8 5 12 13.5 22 10511-20-06 M20X1.5 10 6 12 13.5 22 10511-22-05 M22X1.5 8 5 14 14 24 10511-22-06 M22X1.5 10 6 14 14 24 10511-24-08 M24X1.5 12 8 16 14 27 10511-30-10 M30X2 16 10 20 19 32 10511-30-12 M30X2 20 12 20 19 32 10511-36-12 M36X2 20 12 25 20 38 10511-36-16 M36X2 25 16 25 20 38 10511-42-16 M42X2 25 16 30 20 46 10511-42-20 M42X2 32 20 30 20 46 10511-52-20 M52X2 32 20 38 22 55 20511/20511-T

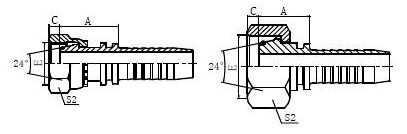

METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
PART NO. THREAD E HOSE BORE TUBE O.D. O-RING DIMENSIONS DN DASH A C S2 20511-16-04 M16X1.5 6 4 8 6.0X1.5 29 1.5 22 20511-16-05 M16X1.5 8 5 8 6.0X1.5 29 1.5 22 20511-18-04T M18X1.5 6 4 10 7.5X1.5 26.5 2 22 20511-18-06 M18X1.5 10 6 10 7.5X1.5 29 2 24 20511-20-04T M20X1.5 6 4 12 9.5X1.5 28.5 2.5 24 20511-20-05T M20X1.5 8 5 12 9.5X1.5 28.5 2.5 24 20511-20-06T M20X1.5 10 6 12 9.5X1.5 28.5 2.5 24 20511-20-08 M20X1.5 12 8 12 9.5X1.5 31.5 2.5 27 20511-22-06T M22X1.5 10 6 14 10.0X2.0 28.5 2.5 27 20511-22-08 M22X1.5 12 8 14 10.0X2.0 31.5 2.5 27 20511-24-06T M24X1.5 10 6 16 12.0X2.0 28.5 2.5 30 20511-24-08T M24X1.5 12 8 16 12.0X2.0 30 3 30 20511-30-08T M30X2 12 8 20 16.3X2.4 35 3 36 20511-30-10T M30X2 16 10 20 16.3X2.4 36 3 36 20511-30-12 M30X2 20 12 20 16.3X2.4 39 3 36 20511-30-14 M30X2 22 14 20 16.3X2.4 39 3 36 20511-36-12T M36X2 20 12 25 20.3X2.4 36 3 41 20511-36-14T M36X2 22 14 25 20.3X2.4 36 3 41 20511-36-16 M36X2 25 16 25 20.3X2.4 40.5 3 41 20511-42-12T M42X2 20 12 30 25.3X2.4 40 5 50 20511-42-16T M42X2 25 16 30 25.3X2.4 41 5 50 20511-42-20 M42X2 32 20 30 25.3X2.4 46 5 50 20511-52-20T M52X2 32 20 38 33.3X2.4 44 6.5 60 20511-52-24T M52X2 40 24 38 33.3X2.4 44 6.5 60 20541/20541-T

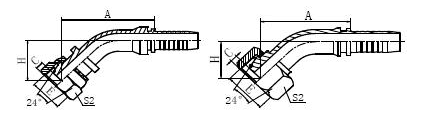

45 METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
PART NO. THREAD E HOSE BORE TUBE O.D. O-RING? DIMENSIONS DN DASH A C H S2 20541-16-04 M16X1.5 6 4 8 6.0X1.5 50.4 1.5 28.3 22 20541-16-05 M16X1.5 8 5 8 6.0X1.5 52.2 1.5 28.9 22 20541-18-04T M18X1.5 6 4 10 7.5X1.5 43.4 2 21.3 22 20541-18-06 M18X1.5 10 6 10 7.5X1.5 54.3 2 29.6 24 20541-20-04T M20X1.5 6 4 12 9.0X1.5 45.5 2.5 23.4 24 20541-20-05T M20X1.5 8 5 12 9.0X1.5 48.1 2.5 24.3 24 20541-20-06T M20X1.5 10 6 12 9.0X1.5 49.7 2.5 25 24 20541-20-08 M20X1.5 12 8 12 9.0X1.5 67.8 2.5 32.8 27 20541-22-06T M22X1.5 10 6 14 10.0X2.0 49.6 2.5 25.3 27 20541-22-08 M22X1.5 12 8 14 10.0X2.0 68.1 2.5 33.2 27 20541-24-08T M24X1.5 12 8 16 12.0X2.0 62.5 3 27.5 30 20541-24-10 M24X1.5 16 10 16 12.0X2.0 80.7 2.5 35.9 30 20541-30-10T M30X2 16 10 20 16.3X2.4 75.8 3 31 36 20541-30-12 M30X2 20 12 20 16.3X2.4 90.5 3 42.4 36 20541-36-12T M36X2 20 12 25 20.3X2.4 82.7 3 34.6 41 20541-36-14T M36X2 22 14 25 20.3X2.4 84.4 3 34 41 20541-36-16 M36X2 25 16 25 20.3X2.4 99.7 3 44.2 41 20541-42-16T M42X2 25 16 30 25.3X2.4 92.3 5 36.8 50 20541-42-20 M42X2 32 20 30 25.3X2.4 110.8 5 50 50 20541-52-20T M52X2 32 20 38 33.3X2.4 103.4 6.5 41.2 60 20541-52-24T M52X2 40 24 38 33.3X2.4 115.9 6.5 45.1 60 20591/20591-T

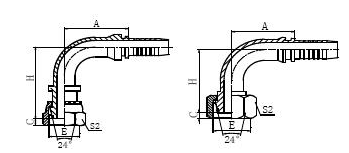

90 METRIC FEMALE 24 CONE O-RING H.T
ISO 12151-2--DIN 3865
PART NO. THREAD E HOSE BORE TUBE O.D. O-RING? DIMENSIONS DN DASH A C H S2 20591-16-04 M16X1.5 6 4 8 6.5X1.5 30 1.5 48 22 20591-16-05 M16X1.5 8 5 8 6.5X1.5 33 1.5 51 22 20591-18-04T M18X1.5 6 4 10 8.5X1.5 30 2 39.5 22 20591-18-05T M18X1.5 8 5 10 8.5X1.5 33 2 41.5 22 20591-18-06 M18X1.5 10 6 10 8.5X1.5 35.3 2 52.8 24 20591-20-04T M20X1.5 6 4 12 10.5X1.5 30 2.5 41 24 20591-20-05T M20X1.5 8 5 12 10.5X1.5 33.5 2.5 44 24 20591-20-06T M20X1.5 10 6 12 10.5X1.5 35.8 2.5 46.3 24 20591-20-08 M20X1.5 12 8 12 10.5X1.5 41 2.5 61 27 20591-22-06T M22X1.5 10 6 14 12.0X2.0 35.3 2.5 46.8 27 20591-22-08 M22X1.5 12 8 14 12.0X2.0 41 2.5 61 27 20591-24-06T M24X1.5 10 6 16 13.0X2.0 35.3 3 46.3 30 20591-24-08T M24X1.5 12 8 16 13.0X2.0 41 3 53 30 20591-24-10 M24X1.5 16 10 16 13.0X2.0 56.5 2.5 67.5 30 20591-30-10T M30X2 16 10 20 16.3X2.4 56.5 3 60.5 36 20591-30-12 M30X2 20 12 20 16.3X2.4 65.5 3 81 36 20591-36-12T M36X2 20 12 25 20.3X2.4 66.2 3 70 41 20591-36-14T M36X2 22 14 25 20.3X2.4 71.2 3 71 41 20591-36-16 M36X2 25 16 25 20.3X2.4 78 3 88 41 20591-42-16T M42X2 25 16 30 25.3X2.4 78 5 77.5 50 20591-42-20 M42X2 32 20 30 25.3X2.4 91.5 5 101.5 50 20591-52-20T M52X2 32 20 38 33.3X2.4 93 6.5 89 60 20591-52-24T M52X2 40 24 38 33.3X2.4 109.4 6.5 102.5 60
-
