Cam & Groove Coupling (Camlock Coupling)

Cam & groove coupling is very  easy to use.  In general, camlock coupling has two kinds of adapter: male and female. You just need insert the male  into the female until contact is made with the gasket. Then press down the cam arms simultaneously to produce a uniform gasket compression. During the process of installation, no tools are required and hand pressure is enough. Hence, camlock coupling not only save your time but also the tools and human power.

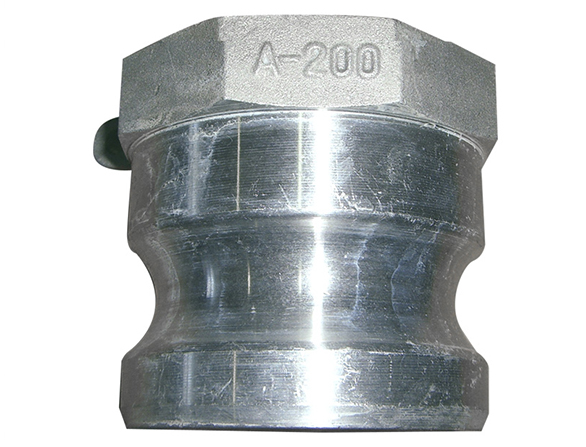

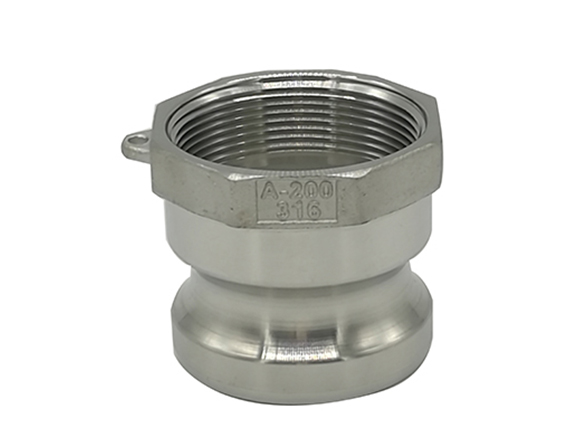

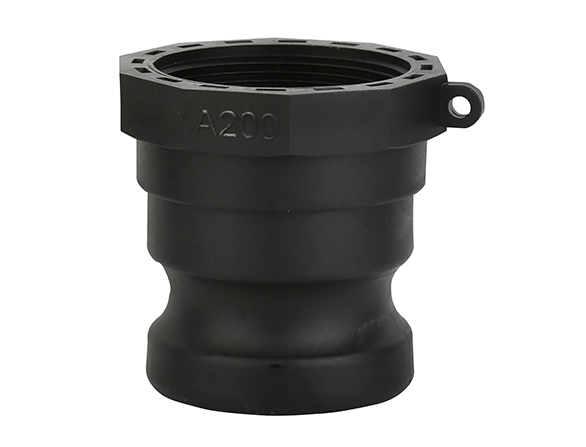

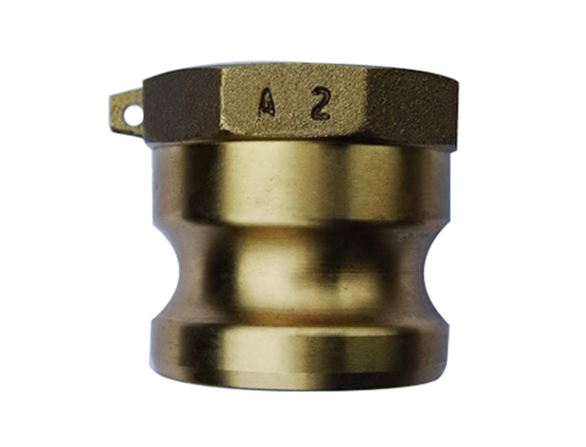

CAMLOCK TYPE A （MALE ADAPTER × FEMALE THREAD）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-A050A	CL-A050S	CL-A050B	CL-A050P	CL-A050N
	3/4"	CL-A075A	CL-A075S	CL-A075B	CL-A075P	CL-A075N
	1"	CL-A100A	CL-A100S	CL-A100B	CL-A100P	CL-A100N
	1-1/4"	CL-A125A	CL-A125S	CL-A125B	CL-A125P	CL-A125N
	1-1/2"	CL-A150A	CL-A150S	CL-A150B	CL-A150P	CL-A150N
	2"	CL-A200A	CL-A200S	CL-A200B	CL-A200P	CL-A200N
	2-1/2"	CL-A250A	CL-A250S	CL-A250B	CL-A250P	CL-A250N
	3"	CL-A300A	CL-A300S	CL-A300B	CL-A300P	CL-A300N
	4"	CL-A400A	CL-A400S	CL-A400B	CL-A400P	CL-A400N
	5"	CL-A500A	CL-A500S	CL-A500B	CL-A500P	CL-A500N
	6"	CL-A600A	CL-A600S	CL-A600B	CL-A600P	CL-A600N
CAMLOCK  TYPE B （FEMALE COUPLER × MALE THREAD ）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-B050A	CL-B050S	CL-B050B	CL-B050P	CL-B050N
	3/4"	CL-B075A	CL-B075S	CL-B075B	CL-B075P	CL-B075N
	1"	CL-B100A	CL-B100S	CL-B100B	CL-B100P	CL-B100N
	1-1/4"	CL-B125A	CL-B125S	CL-B125B	CL-B125P	CL-B125N
	1-1/2"	CL-B150A	CL-B150S	CL-B150B	CL-B150P	CL-B150N
	2"	CL-B200A	CL-B200S	CL-B200B	CL-B200P	CL-B200N
	2-1/2"	CL-B250A	CL-B250S	CL-B250B	CL-B250P	CL-B250N
	3"	CL-B300A	CL-B300S	CL-B300B	CL-B300P	CL-B300N
	4"	CL-B400A	CL-B400S	CL-B400B	CL-B400P	CL-B400N
	5"	CL-B500A	CL-B500S	CL-B500B	CL-B500P	CL-B500N
	6"	CL-B600A	CL-B600S	CL-B600B	CL-B600P	CL-B600N
CAMLOCK TYPE C （FEMALE COUPLER ×HOSE SHANK）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-C050A	CL-C050S	CL-C050B	CL-C050P	CL-C050N
	3/4"	CL-C075A	CL-C075S	CL-C075B	CL-C075P	CL-C075N
	1"	CL-C100A	CL-C100S	CL-C100B	CL-C100P	CL-C100N
	1-1/4"	CL-C125A	CL-C125S	CL-C125B	CL-C125P	CL-C125N
	1-1/2"	CL-C150A	CL-C150S	CL-C150B	CL-C150P	CL-C150N
	2"	CL-C200A	CL-C200S	CL-C200B	CL-C200P	CL-C200N
	2-1/2"	CL-C250A	CL-C250S	CL-C250B	CL-C250P	CL-C250N
	3"	CL-C300A	CL-C300S	CL-C300B	CL-C300P	CL-C300N
	4"	CL-C400A	CL-C400S	CL-C400B	CL-C400P	CL-C400N
	5"	CL-C500A	CL-C500S	CL-C500B	CL-C500P	CL-C500N
	6"	CL-C600A	CL-C600S	CL-C600B	CL-C600P	CL-C600N
CAMLOCK TYPE D （FEMALE COUPLER × FEMALE THREAD）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-D050A	CL-D050S	CL-D050B	CL-D050P	CL-D050N
	3/4"	CL-D075A	CL-D075S	CL-D075B	CL-D075P	CL-D075N
	1"	CL-D100A	CL-D100S	CL-D100B	CL-D100P	CL-D100N
	1-1/4"	CL-D125A	CL-D125S	CL-D125B	CL-D125P	CL-D125N
	1-1/2"	CL-D150A	CL-D150S	CL-D150B	CL-D150P	CL-D150N
	2"	CL-D200A	CL-D200S	CL-D200B	CL-D200P	CL-D200N
	2-1/2"	CL-D250A	CL-D250S	CL-D250B	CL-D250P	CL-D250N
	3"	CL-D300A	CL-D300S	CL-D300B	CL-D300P	CL-D300N
	4"	CL-D400A	CL-D400S	CL-D400B	CL-D400P	CL-D400N
	5"	CL-D500A	CL-D500S	CL-D500B	CL-D500P	CL-D500N
	6"	CL-D600A	CL-D600S	CL-D600B	CL-D600P	CL-D600N
CAMLOCK TYPE E （MALE ADAPTER × HOSE SHANK）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-E050A	CL-E050S	CL-E050B	CL-E050P	CL-E050N
	3/4"	CL-E075A	CL-E075S	CL-E075B	CL-E075P	CL-E075N
	1"	CL-E100A	CL-E100S	CL-E100B	CL-E100P	CL-E100N
	1-1/4"	CL-E125A	CL-E125S	CL-E125B	CL-E125P	CL-E125N
	1-1/2"	CL-E150A	CL-E150S	CL-E150B	CL-E150P	CL-E150N
	2"	CL-E200A	CL-E200S	CL-E200B	CL-E200P	CL-E200N
	2-1/2"	CL-E250A	CL-E250S	CL-E250B	CL-E250P	CL-E250N
	3"	CL-E300A	CL-E300S	CL-E300B	CL-E300P	CL-E300N
	4"	CL-E400A	CL-E400S	CL-E400B	CL-E400P	CL-E400N
	5"	CL-E500A	CL-E500S	CL-E500B	CL-E500P	CL-E500N
	6"	CL-E600A	CL-E600S	CL-E600B	CL-E600P	CL-E600N
CAMLOCK TYPE F （MALE ADAPTOR × MALE THREAD）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-F050A	CL-F050S	CL-F050B	CL-F050P	CL-F050N
	3/4"	CL-F075A	CL-F075S	CL-F075B	CL-F075P	CL-F075N
	1"	CL-F100A	CL-F100S	CL-F100B	CL-F100P	CL-F100N
	1-1/4"	CL-F125A	CL-F125S	CL-F125B	CL-F125P	CL-F125N
	1-1/2"	CL-F150A	CL-F150S	CL-F150B	CL-F150P	CL-F150N
	2"	CL-F200A	CL-F200S	CL-F200B	CL-F200P	CL-F200N
	2-1/2"	CL-F250A	CL-F250S	CL-F250B	CL-F250P	CL-F250N
	3"	CL-F300A	CL-F300S	CL-F300B	CL-F300P	CL-F300N
	4"	CL-F400A	CL-F400S	CL-F400B	CL-F400P	CL-F400N
	5"	CL-F500A	CL-F500S	CL-F500B	CL-F500P	CL-F500N
	6"	CL-F600A	CL-F600S	CL-F600B	CL-F600P	CL-F600N
CAMLOCK TYPE DC （DUST CAP）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-DC050A	CL-DC050S	CL-DC050B	CL-DC050P	CL-DC050N
	3/4"	CL-DC075A	CL-DC075S	CL-DC075B	CL-DC075P	CL-DC075N
	1"	CL-DC100A	CL-DC100S	CL-DC100B	CL-DC100P	CL-DC100N
	1-1/4"	CL-DC125A	CL-DC125S	CL-DC125B	CL-DC125P	CL-DC125N
	1-1/2"	CL-DC150A	CL-DC150S	CL-DC150B	CL-DC150P	CL-DC150N
	2"	CL-DC200A	CL-DC200S	CL-DC200B	CL-DC200P	CL-DC200N
	2-1/2"	CL-DC250A	CL-DC250S	CL-DC250B	CL-DC250P	CL-DC250N
	3"	CL-DC300A	CL-DC300S	CL-DC300B	CL-DC300P	CL-DC300N
	4"	CL-DC400A	CL-DC400S	CL-DC400B	CL-DC400P	CL-DC400N
	5"	CL-DC500A	CL-DC500S	CL-DC500B	CL-DC500P	CL-DC500N
	6"	CL-DC600A	CL-DC600S	CL-DC600B	CL-DC600P	CL-DC600N
CAMLOCK TYPE DP（DUST PLUG）
	SIZE	PART#
		Aluminum	Stainless Steel	Brass	PP	Nylon
	1/2"	CL-DP050A	CL-DP050S	CL-DP050B	CL-DP050P	CL-DP050N
	3/4"	CL-DP075A	CL-DP075S	CL-DP075B	CL-DP075P	CL-DP075N
	1"	CL-DP100A	CL-DP100S	CL-DP100B	CL-DP100P	CL-DP100N
	1-1/4"	CL-DP125A	CL-DP125S	CL-DP125B	CL-DP125P	CL-DP125N
	1-1/2"	CL-DP150A	CL-DP150S	CL-DP150B	CL-DP150P	CL-DP150N
	2"	CL-DP200A	CL-DP200S	CL-DP200B	CL-DP200P	CL-DP200N
	2-1/2"	CL-DP250A	CL-DP250S	CL-DP250B	CL-DP250P	CL-DP250N
	3"	CL-DP300A	CL-DP300S	CL-DP300B	CL-DP300P	CL-DP300N
	4"	CL-DP400A	CL-DP400S	CL-DP400B	CL-DP400P	CL-DP400N
	5"	CL-DP500A	CL-DP500S	CL-DP500B	CL-DP500P	CL-DP500N
	6"	CL-DP600A	CL-DP600S	CL-DP600B	CL-DP600P	CL-DP600N
CAMLOCK TYPE AA				TYPE DA
（MALE ADAPTER × MALE ADAPTER）				（FEMALE COUPLER × MALE ADAPTER）
	SIZE	PART#			SIZE	PART#
		Aluminum				Aluminum
	1-1/2"	CL-AA150A			1-1/2"	CL-DA150A
	2"	CL-AA200A			2"	CL-DA200A
	2-1/2"	CL-AA250A			2-1/2"	CL-DA250A
	3"	CL-AA300A			3"	CL-DA300A
	4"	CL-AA400A			4"	CL-DA400A
TYPE DD				TYPE FM
FEMALE COUPLER × FEMALE COUPLER				FLANGE × MALE COUPLER
	SIZE	PART#			SIZE	PART#
		Aluminum				Aluminum
	1-1/2"	CL-DD150A			1-1/2"	CL-FM150A
	2"	CL-DD200A			2"	CL-FM200A
	2-1/2"	CL-DD250A			2-1/2"	CL-FM250A
	3"	CL-DD300A			3"	CL-FM300A
	4"	CL-DD400A			4"	CL-FM400A
TYPE DF				PIN
FLANGE × FEMALE COUPLER					SIZE	PART#
	SIZE	PART#			1/2"	PIN-050
		Aluminum			3/4"	PIN-075
	1-1/2"	CL-DF150A			1"	PIN-100
	2"	CL-DF200A			1-1/4"	PIN-125
	2-1/2"	CL-DF250A			1-1/2"	PIN-150
	3"	CL-DF300A			2"	PIN-200
	4"	CL-DF400A			2-1/2"	PIN-250
					3"	PIN-300
GASKETS BUNA-N GASKETS					4"	PIN-400
	SIZE	PART#			5"	PIN-500
	1/2"	CGSK-050N			6"	PIN-600
	3/4"	CGSK-075N
	1"	CGSK-100N
	1-1/4"	CGSK-125N
	1-1/2"	CGSK-150N
	2"	CGSK-200N
	2-1/2"	CGSK-250N
	3"	CGSK-300N
	4"	CGSK-400N
	5"	CGSK-500N
	6"	CGSK-600N
ARMS
	SIZE	PART#
		Stainless Steel	Brass
	1/2" ~ 3/4"	CARM-075S	CARM-075B
	1"	CARM-100S	CARM-100B
	1-1/4" ~ 2-1/2"	CARM-250S	CARM-250B
	3" ~ 4"	CARM-400S	CARM-400B
	6"	CARM-600S	CARM-600B
