Impact Bar & Impact Bed

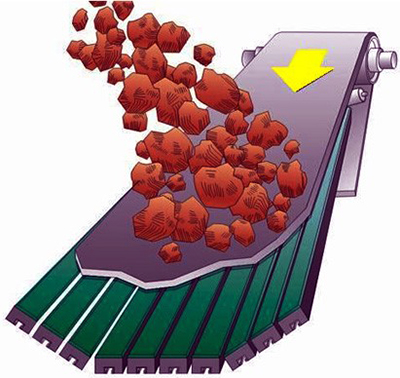

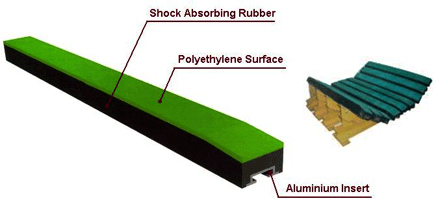

Impact Bar:
Impact bar is an important cushion part.
Slow down the material on the conveyor belt and the impact damage, avoid sharp objects for tape tearing and scratches.
Used in belt conveyor material guiding groove, blanking point below the belt.
Outstanding capability to absorbing impact and low friction coefficient.
Technical Data Sheet of Impact Bar Description Unit Specification Cover properties Cover material UHMWPE Grade Molecular Weight >=4,000,000 Color - Green/Blue/White Specific Gravity g/cm3 0.94 Friction Coefficient 0.07 Tensile Strength Mpa 30 Rubber cushion compound Elongation % >=350 Specific Gravity g/cm3 1.27 Hardness ShoreA 60+/-5 Adhesion UHMWPE&Rubber N/mm 6 Rubber&Aluminium part N/mm 6

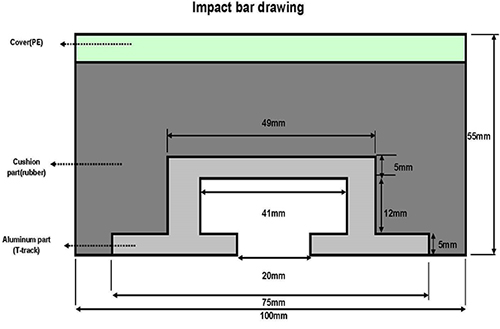

Model:
Specification
Height
Width
Length
(mm)
(mm)
(mm)
(mm)
1220*100*50 50 100 1220 1220*100*75 75 100 1220 1220*100*100 100 100 1220 1400*100*50 50 100 1400 1400*100*75 75 100 1400 1400*100*100 100 100 1400 1524*100*50 50 100 1524 1524*100*75 75 100 1524 1524*100*100 100 100 1524 1600*100*50 50 100 1600 1600*100*75 75 100 1600 1600*100*100 100 100 1600 1800*100*50 50 100 1800 1800*100*75 75 100 1800 1800*100*100 100 100 1800
Impact bed:
Surface Material: UHMW, PE
Surface Color: green, white, blueandbrown
Type: General, High elastic, Fire ResistantModel Selection:
Belt width
(mm)Bar number Distance

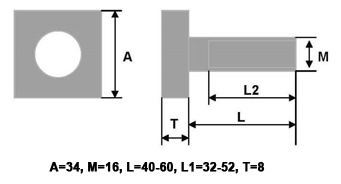

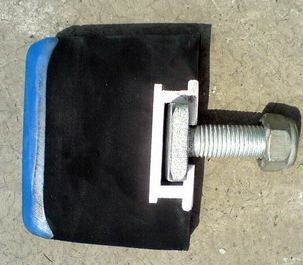

(mm)Roller width left Center right both sides Center (mm) 550 1 2 1 50 0 200 650 2 2 2 25 25 250 800 2 3 2 50 5 315 1000 3 3 3 25 25 380 1200 3 4 3 55 20 465 1400 4 5 4 45 7 530 1600 5 5 5 25 25 600 1800 5 6 5 25 10 670 2000 6 6 6 20 250 750 Impact bar Bolt
Type: M16-40;M16-50;M16-60
-
