Metric Banjo Fitting

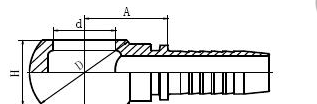

70011

METRIC BANJO DIN 7642

PART NO.	BOLT	HOSE BORE		DIMENSIONS
PART NO.	BOLT	DN	DASH	d	D	H
70011-12-04	M12X1.5	6	4	12	20	12
70011-12-05	M12X1.5	8	5	12	20	12
70011-12-06	M12X1.5	10	6	12	20	12
70011-14-04	M14X1.5	6	4	14	24	14
70011-14-05	M14X1.5	8	5	14	24	14
70011-14-06	M14X1.5	10	6	14	24	14
70011-16-06	M16X1.5	10	6	16	28	16
70011-18-06	M18X1.5	10	6	18	32	20
70011-18-08	M18X1.5	12	8	18	32	20
70011-22-08	M22X1.5	12	8	22	39	25
70011-22-10	M22X1.5	16	10	22	39	25
70011-26-12	M26X1.5	20	12	26	46	30

700M

MATRIC BOLT DIN 7643

PART NO	THREAD E	DIMENSIONS
PART NO	THREAD E	A	B	C	S
700M-10	M10X1	19	5.5	6	14
700M-12	M12X1.5	24	7	6	17
700M-14	M14X1.5	26	9	6	19
700M-16	M16X1.5	28	11	6	22
700M-18	M18X1.5	32	13	6	24
700M-22	M22X1.5	39	16	7	27
700M-26	M26X1.5	45	20	7	32
700M-30	M30X1.5	51	24	7	36
